LFXTAL003240 Crystal, 16MHz IQD Frequency Products

IQD FREQUENCY PRODUCTSUGS :LFXTAL003240 Code de commande:9713700

Prix:
Prix ​​promotionnel€1,00

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1911 unité)

Documents et téléchargements

description

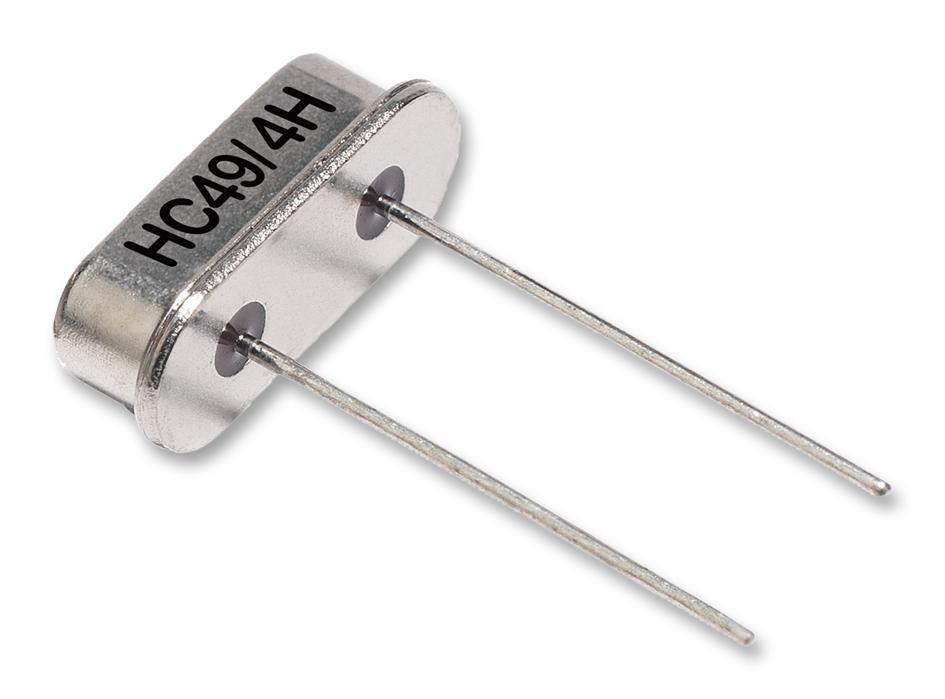

IQD FREQUENCY PRODUCTS - LFXTAL003240 - Crystal, 16 MHz, Through Hole, 11mm x 4.7mm, 50 ppm, 30 pF, 30 ppm, HC-49/4H

  • Frequency Nom: 16MHz
  • Crystal Case: Through Hole, 11mm x 4.7mm
  • Frequency Stability + / -: 50ppm
  • Load Capacitance: 30pF
  • Frequency Tolerance + / -: 30ppm
  • Product Range: HC-49/4H Series
  • Operating Temperature Min: -20°C
  • Operating Temperature Max: 70°C
  • SVHC: No SVHC (15-Jan-2018)
  • Accuracy: ± 30ppm
  • Crystal Mounting Type: Through Hole
  • Frequency: 16MHz
  • Frequency Accuracy + @: 30ppm
  • Frequency Accuracy - @: 30ppm
  • Frequency Stability: ± 50ppm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -20°C to +70°C
  • Output Frequency: 16MHz
  • Temperature Stability + @: 50ppm
  • Temperature Stability - @: 50ppm
  • Temperature Stabilty: ± 50ppm
