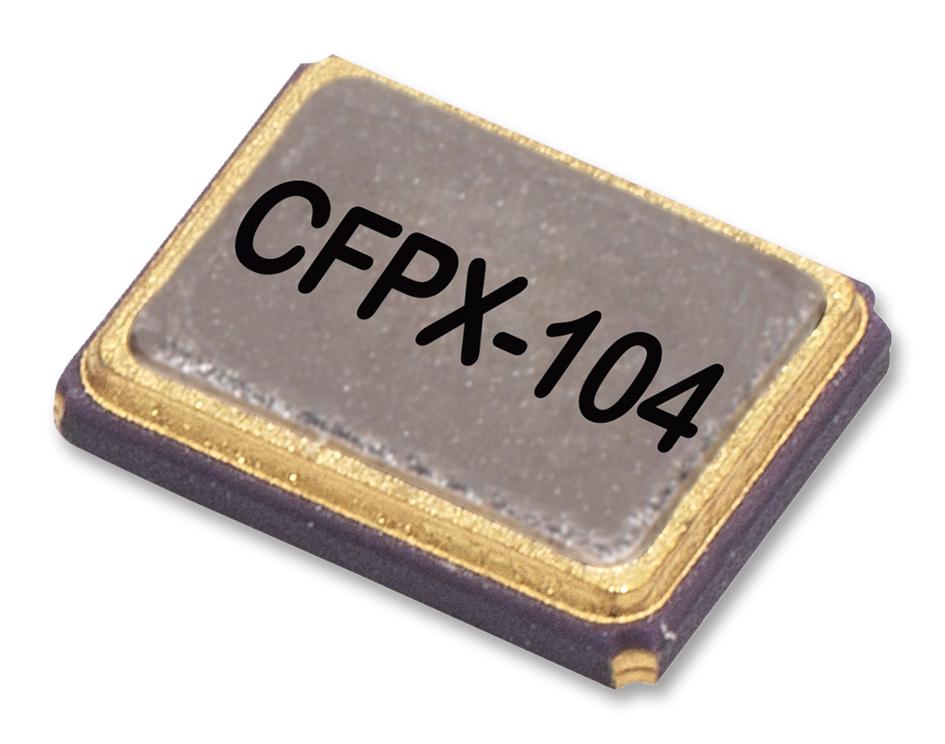

IQD FREQUENCY PRODUCTS - LFXTAL033643 - Crystal, 14.31818 MHz, SMD, 5mm x 3.2mm, 50 ppm, 18 pF, 50 ppm, CFPX-104
- Frequency Nom: 14.31818MHz
- Crystal Case: SMD, 5mm x 3.2mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 18pF
- Frequency Tolerance + / -: 50ppm
- Product Range: CFPX-104 Series
- Operating Temperature Min: -10°C
- Operating Temperature Max: 60°C
- SVHC: No SVHC (15-Jan-2018)
- Accuracy: ± 50ppm
- Crystal Mounting Type: SMD
- Frequency: 14.31818MHz
- Frequency Accuracy + @: 50ppm
- Frequency Accuracy - @: 10ppm
- Frequency Stability: ± 50ppm
- No. of Pins: 4Pins
- Operating Temperature Range: -10°C to +60°C
- Output Frequency: 14.31818MHz
- Temperature Stability + @: 50ppm
- Temperature Stability - @: 10
- Temperature Stabilty: ± 50ppm
