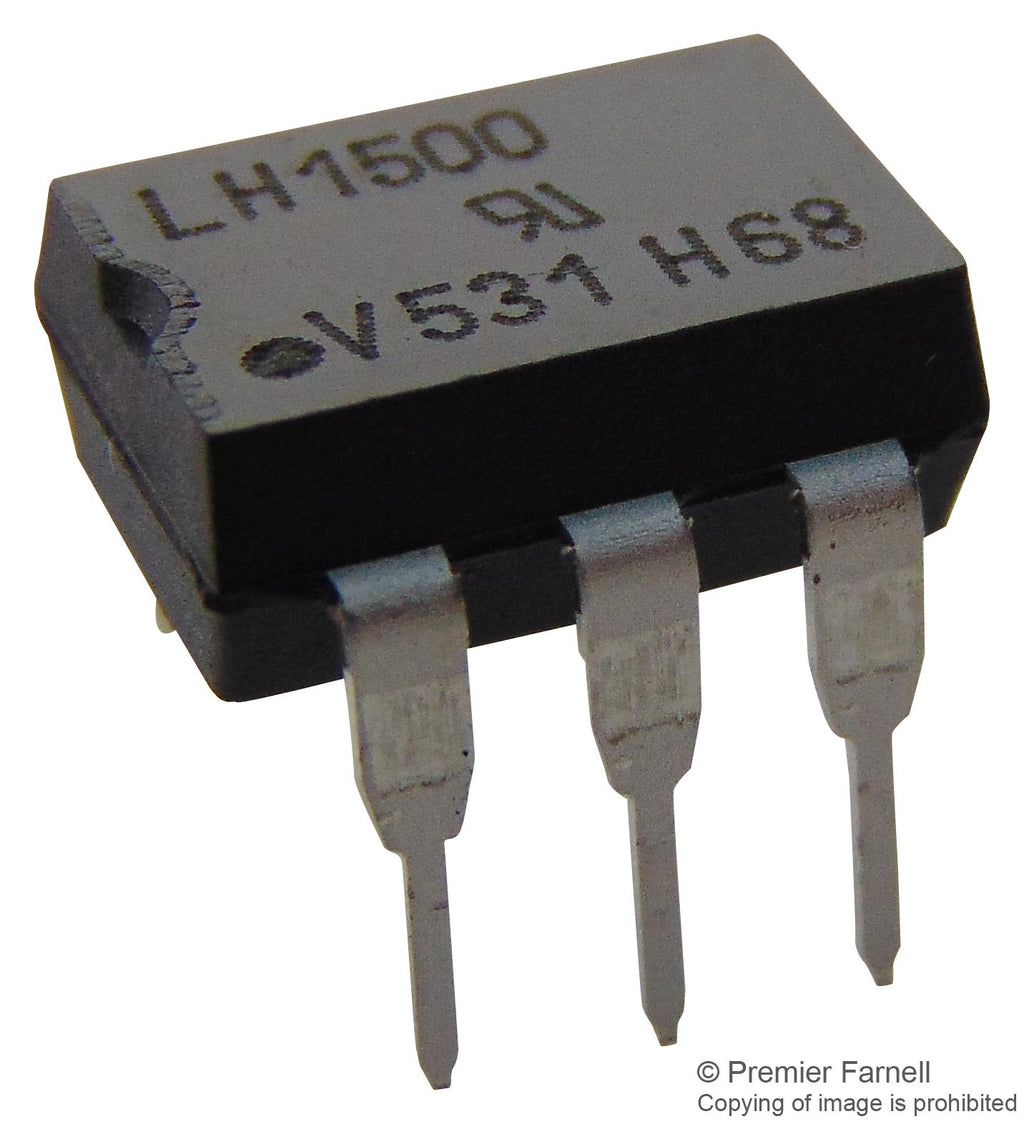

VISHAY - LH1500AT - MOSFET Relay, 350 V, 150 mA, 25 ohm, SPST-NO
- Contact Configuration: SPST-NO
- Load Current: 150mA
- Relay Terminals: Through Hole
- Load Voltage Max: 350V
- On State Resistance Max: 25ohm
- Isolation Voltage: 5.3kV
- Forward Current If: 900µA
- Product Range: -
- Approval Bodies: BABT, BSI, CSA, FIMKO
- Approval Category: UL Recognised
- Control Current Max: 2mA
- Control Current Min: 0.2mA
- Control Current Typ: 0.8mA
- Control Current Voltage: 1.25V
- Control Voltage DC Max: 1.45V
- Control Voltage DC Min: 1.15V
- Control Voltage Type: DC
- External Depth: 6.4mm
- External Length / Height: 3.55mm
- External Width: 8.6mm
- Lead Spacing: 2.54mm
- Load Current Max: 250mA
- Load Current RMS Max: 150mA
- Load Voltage DC Max: 350V
- Load Voltage Range: 350V
- No. of Pins: 6Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- RMS Load Voltage Max: 350V
- Row Pitch: 7.62mm
- Turn Off Time: 2ms
- Turn On Time: 2ms
