LLS1H103MELC Cap, 10000µF, 50V, Alu Elec, Snap In NICHICON

NICHICONUGS :LLS1H103MELC Code de commande:8813230

Prix:
Prix ​​promotionnel€7,94

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (200 unité)

Documents et téléchargements

description

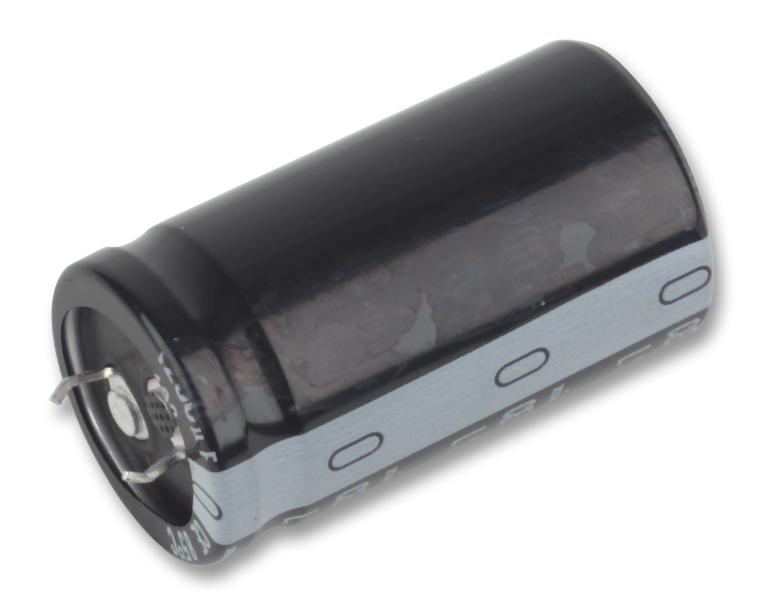

NICHICON - LLS1H103MELC - Electrolytic Capacitor, Snap-in, 10000 µF, 50 V, ± 20%, Snap-In, 3000 hours @ 85°C

  • Capacitance: 10000µF
  • Voltage Rating: 50V
  • Product Range: LS Series
  • Lifetime @ Temperature: 3000 hours @ 85°C
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Quick Connect, Snap-In
  • Diameter: 35mm
  • Lead Spacing: 10mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Height: 35mm
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2018)
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 35mm
  • No. of Pins: 2Pins
  • Operating Life Temperature: 85°C
  • Operating Temperature Range: -40°C to +85°C
  • Operating life Time: 3000h
  • PCB Hole Diameter: 2mm
  • Ripple Current AC: 4.92A
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Voltage Rating V DC: 50V
