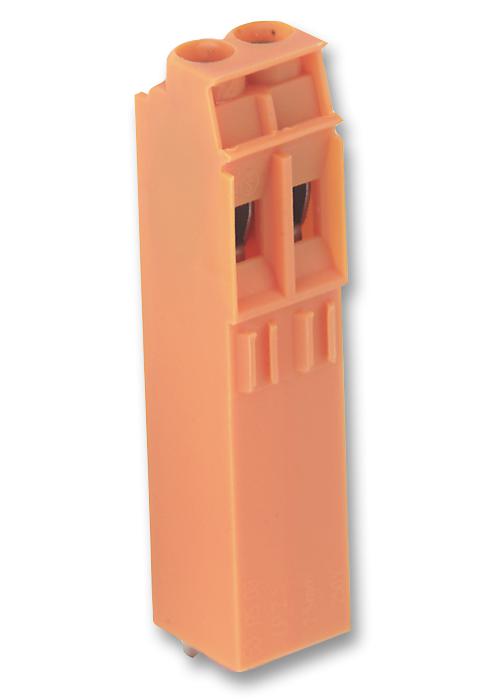

WEIDMULLER - LP1H5.08/2/90 - Wire-To-Board Terminal Block, 5.08 mm, 26 AWG, 12 AWG
- Pitch Spacing: 5.08mm
- No. of Positions: -
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 12AWG
- Conductor Area CSA: -
- Wire Connection Method: -
- Rated Current: 15A
- Rated Voltage: 300V
- Block Orientation: -
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, UL, VDE
- Approval Category: UL Recognised
- Connector Mounting: PCB Mount
- Connector Type: Terminal Block, PCB
- Contact Material: Copper
- Contact Plating: Tin Plated Contacts
- External Length / Height: 45mm
- Flammability Rating: UL94V-2
- Material: PA66
- Voltage Rating VAC: 300V
- Wire Area Size Max: 4mm²
