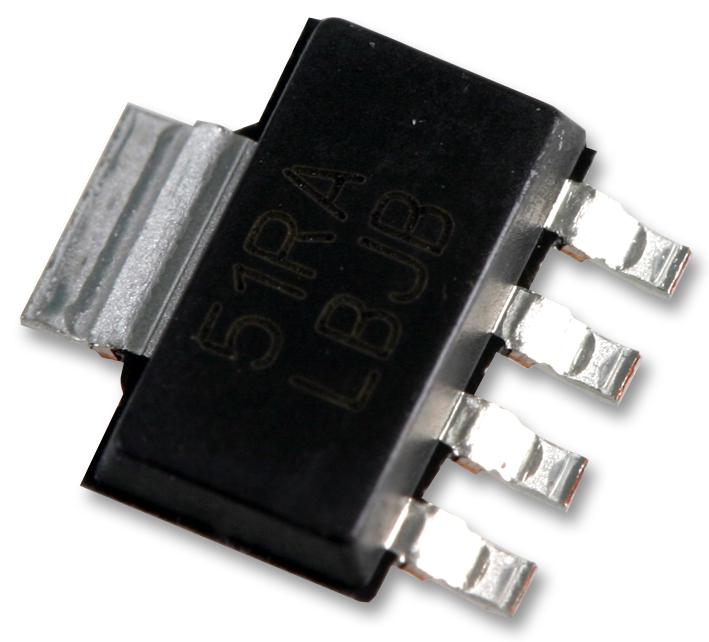

TEXAS INSTRUMENTS - LP38693MP-ADJ/NOPB - LDO Voltage Regulator, Adjustable, 2.7V to 10V in, 250mV drop, 1.25V to 9V/500mA out, SOT-223-5
- Output Type: Adjustable
- Input Voltage Min: 2.7V
- Input Voltage Max: 10V
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: 1.25V
- Adjustable Output Voltage Max: 9V
- Output Current: 500mA
- Dropout Voltage Vdo: 250mV
- LDO Regulator Case Style: SOT-223
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2019)
- Accuracy %: 2%
- Base Number: 38693
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Voltage: 9V
- Output Voltage Adjustable Range: 1.25V to 9V
- Output Voltage Max: 9V
- Output Voltage Min: 1.25V
- Primary Input Voltage: 10V
- Supply Voltage Min: 2.7V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: LDO Adjustable Positive
