description

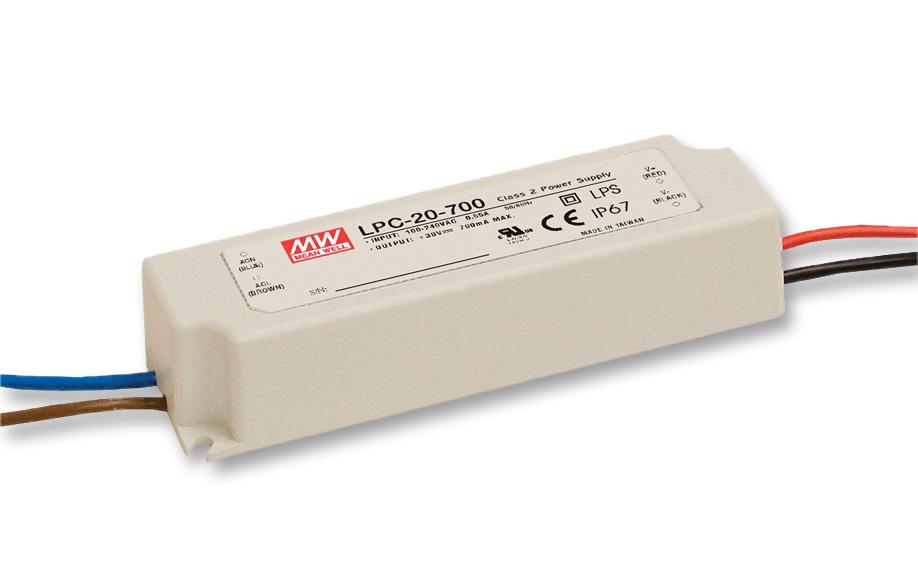

MEAN WELL - LPC-20-700 - LED Driver, ITE, 21 W, 30 V, 700 mA, Constant Current, 90 V
- Output Power Max: 21W
- Output Voltage Max: 30V
- Output Current: 700mA
- LED Driver Mode: Constant Current
- Input Voltage Min: 90V
- Input Voltage Max: 264V
- Product Range: LPC-20 Series
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE
- Current Rating: 700mA
- Depth: 26mm
- Dimming Control Type: PWM
- Efficiency: 83%
- Height: 26mm
- IP Rating: IP67
- Length: 118mm
- No. of Channels: 1Channels
- No. of Outputs: 1Outputs
- Operating Temperature Max: 70°C
- Operating Temperature Min: -30°C
- Operating Temperature Range: -30°C to +70°C
- Output Power: 21W
- Output Voltage Min: 9V
- Power Supply Mounting: Chassis
- Power Supply Output Type: Adjustable, Fixed
- Power Supply Type: External Power Supply
- Supply Voltage: 230V
- Supply Voltage AC Max: 264V
- Supply Voltage AC Min: 90V
- Termination Style: Flying Leads
- Width: 35mm
