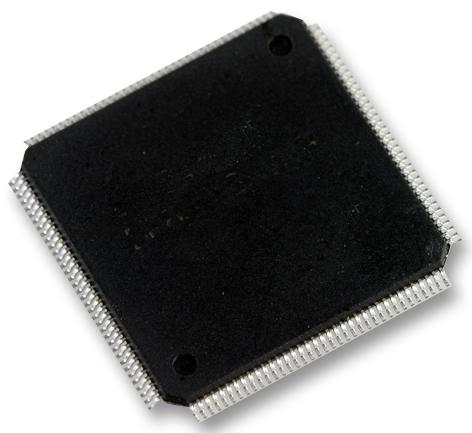

NXP - LPC1788FBD144,551 - ARM MCU, LPC Family LPC1700 Series Microcontrollers, ARM Cortex-M3, 32 bit, 120 MHz, 512 KB
- Product Range: LPC Family LPC1700 Series Microcontrollers
- Architecture: ARM Cortex-M3
- No. of Bits: 32bit
- CPU Speed: 120MHz
- Program Memory Size: 512KB
- RAM Memory Size: 96KB
- No. of Pins: 144Pins
- MCU Case Style: LQFP
- No. of I/O's: 109I/O's
- Embedded Interface Type: CAN, I2C, SPI, SSP, USB, UART
- Supply Voltage Min: 2.4V
- Supply Voltage Max: 3.6V
- MCU Family: LPC
- MCU Series: LPC1700
- MSL: MSL 2 - 1 year
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: ARM Cortex-M3
- EEPROM Memory Size: 4KB
- MPU Core Size: 32bit
- No. of PWM Channels: 6
- No. of Timers: 4
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DAC, DMA, LCD Controller, Timer
- Program Memory Size: 512KB
- Supply Voltage Range: 2.4V to 3.6V
