LS503-51 Float Switch, HORIZ Te Connectivity

TE CONNECTIVITYUGS :LS503-51 Code de commande:1006779

Prix:
Prix ​​promotionnel€47,28

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (32 unité)

Documents et téléchargements

description

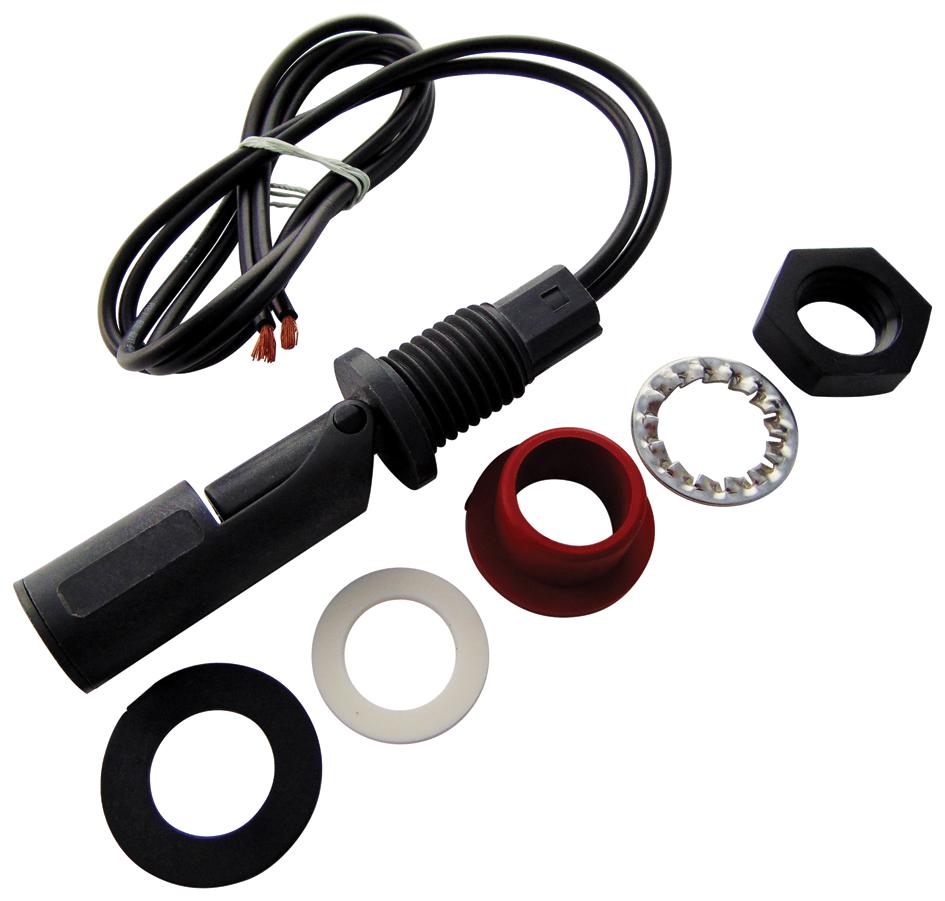

TE CONNECTIVITY - LS503-51 - Float Switch, LS Series, Horizontal, SPST-NO, PPS, 15 W, 250 Vac

  • Operating Pressure Max: 4bar
  • Sensor Body Material: PPS (Polyphenylene Sulfide)
  • Output Current: -
  • Product Range: LS Series
  • Approval Bodies: UL
  • Body Material: PPS (Polyphenylene Sulphide)
  • Colour: Black
  • Contact Configuration: SPST-NO
  • Contact Current AC Max: 1A
  • Contact Voltage AC Max: 250VAC
  • Contact Voltage DC Max: 200VDC
  • External Length / Height: 87.9m
  • Float Diameter: 17.3m
  • Lead Length: 500mm
  • Length: 51.59mm
  • Material: PPS
  • Operating Pressure Range: 0bar to 4bar
  • Operating Temperature Max: 110°C
  • Operating Temperature Min: -30°C
  • Power Rating: 15W
  • Pressure Max: 4bar
  • Sensor Output: SPST-NO / SPST-NC
  • Specific Gravity of Liquid Min: 0.70
  • Switch Operation: Off-On
  • Switching Voltage AC / DC Max: 200VDC
  • Switching Voltage AC / DC Min: 250VAC
  • Thread Size: M16
