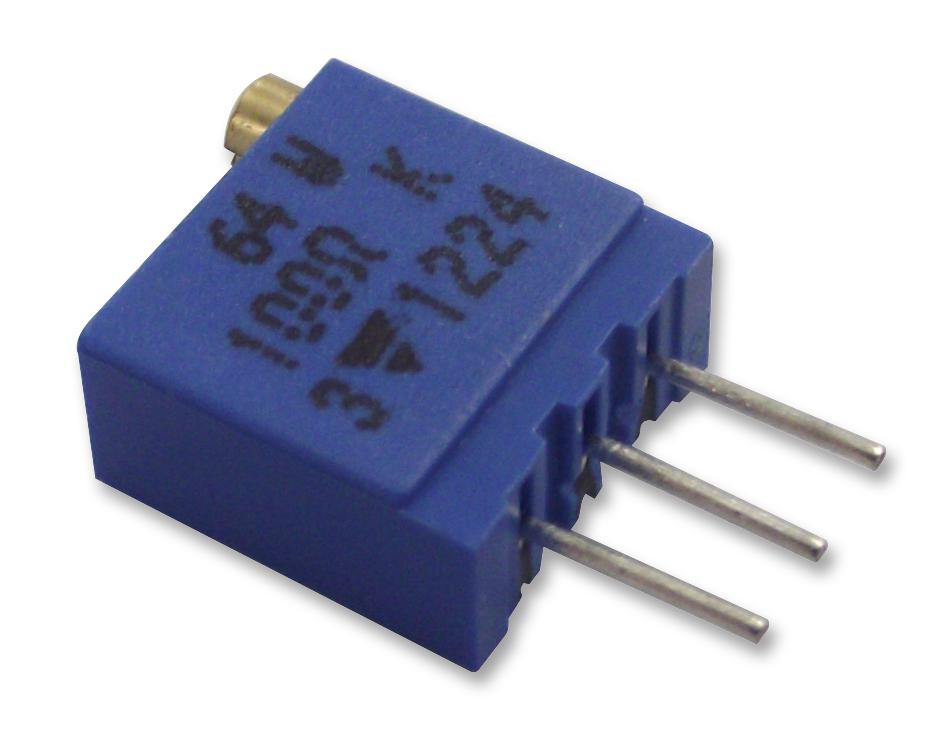

M64W203KB40 Trimmer, Pot, 20K, 23TURN, THD Vishay

VISHAYUGS :M64W203KB40 Code de commande:9608630

Prix:
Prix ​​promotionnel€6,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (704 unité)

Documents et téléchargements

description

VISHAY - M64W203KB40 - Trimpot, Multi Turn, Cermet, Top Adjust, 20 kohm, Through Hole, 23 Turns

  • Track Resistance: 20kohm
  • No. of Turns: 23Turns
  • Potentiometer Mounting: Through Hole
  • Product Range: 64W Series
  • Power Rating: 500mW
  • Resistance Tolerance: ± 10%
  • Temperature Coefficient: ± 100ppm/°C
  • Automotive Qualification Standard: -
  • MSL: -
  • Adjustment Type: Screwdriver Slot
  • Approval Category: MIL-R-22097
  • Contact Resistance Variation +: 2%
  • End Resistance: 1ohm
  • External Length / Height: 9.91mm
  • Full Power Rating Temperature: 70°C
  • Lead Cross-section Depth: 0.51mm
  • Lead Cross-section Width: 0.25mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Proof Voltage: 1000V
  • Resistance: 20kohm
  • Resistor Element Material: Cermet
  • Resistor Mounting: Through Hole
  • Resistor Terminals: Radial Leaded
  • Temperature Coeff. +: 100ppm/°C
  • Temperature Coeff. -: 100ppm/°C
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Track Taper: Linear
  • Voltage Rating: 300V
  • Voltage Rating V DC: 300V
