MAL202116222E3 Cap, 2200µF, 25V, 20%, Through Hole Vishay

VISHAYUGS :MAL202116222E3 Code de commande:1165386

Prix:
Prix ​​promotionnel€8,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (298 unité)

Documents et téléchargements

description

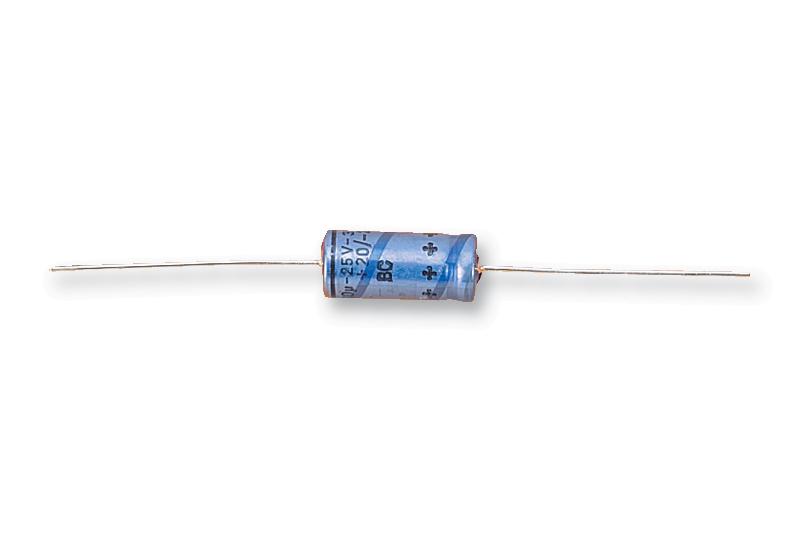

VISHAY - MAL202116222E3 - Electrolytic Capacitor, Miniature, 2200 µF, 25 V, ± 20%, Axial Leaded, 5000 hours @ 85°C, Polar

  • Capacitance: 2200µF
  • Voltage Rating: 25V
  • Product Range: 021 ASM Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Axial Leaded
  • Diameter: 15mm
  • Lead Spacing: -
  • Height: 30mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Lifetime @ Temperature: 5000 hours @ 85°C
  • ESR: 0.132ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 1180mA
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 55/085/56
  • External Length / Height: 30mm
  • Lead Diameter: 0.8mm
  • Leakage Current: 114µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +85°C
  • Operating life Time: 8000h
  • Ripple Current AC: 1020mA
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 85°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 25V
  • Voltage Rating V DC: 25V
