description

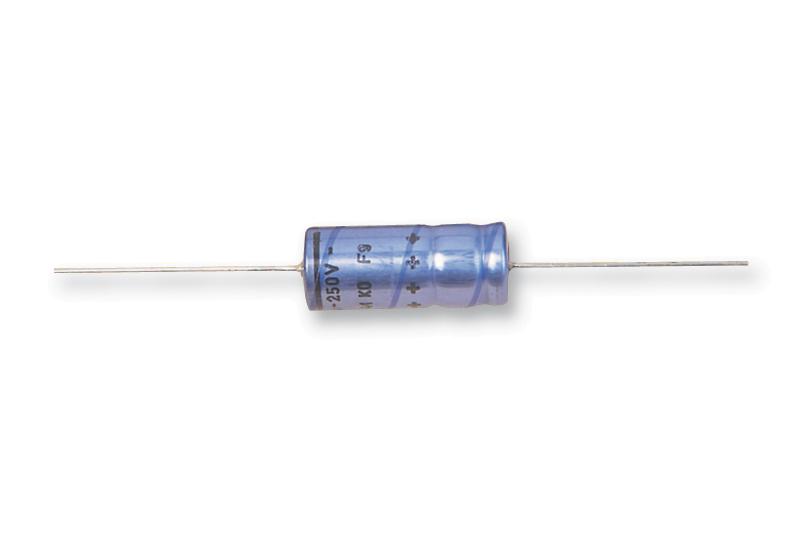

VISHAY - MAL204225109E3 - Electrolytic Capacitor, 10 µF, 350 V, -10%, +50%, Axial Leaded, 8000 hours @ 85°C, Polar
- Capacitance: 10µF
- Voltage Rating: 350V
- Product Range: 042 ASH Series
- Capacitance Tolerance: +50%, -10%
- Capacitor Terminals: Axial Leaded
- Diameter: 12.5mm
- Lead Spacing: -
- Height: 30mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Lifetime @ Temperature: 8000 hours @ 85°C
- ESR: 15ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 150mA
- Capacitance Tolerance ±: +50%, -10%
- Capacitor Mounting: Through Hole
- Climatic Category: 40/085/56
- External Length / Height: 30mm
- Impedance: 15ohm
- Lead Diameter: 0.8mm
- Leakage Current: 25µA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 1500h
- Ripple Current AC: 90mA
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.5%
- Tolerance -: 0.1%
- Voltage Rating DC Max: 350V
- Voltage Rating V DC: 350V
