MAL211818101E3 Cap, 100µF, 63V, 20%, Through Hole Vishay

VISHAYUGS :MAL211818101E3 Code de commande:1692349

Prix:
Prix ​​promotionnel€5,72

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (678 unité)

Documents et téléchargements

description

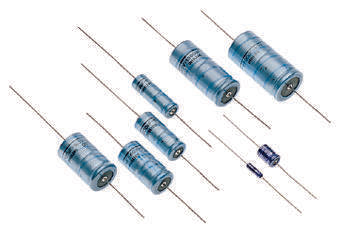

VISHAY - MAL211818101E3 - Electrolytic Capacitor, 100 µF, 63 V, ± 20%, Axial Leaded, 8000 hours @ 125°C, Polar

  • Capacitance: 100µF
  • Voltage Rating: 63V
  • Product Range: 118 AHT Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Axial Leaded
  • Diameter: 10mm
  • Lead Spacing: -
  • Height: 30mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Lifetime @ Temperature: 8000 hours @ 125°C
  • ESR: 1.91ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 340mA
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 30mm
  • Lead Diameter: 0.8mm
  • Leakage Current: 17µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Operating life Time: 8000h
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 125°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 63V
  • Voltage Rating V DC: 63V
