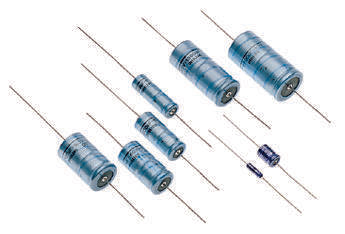

VISHAY - MAL211818102E3 - Electrolytic Capacitor, 1000 µF, 63 V, ± 20%, Axial Leaded, 8000 hours @ 125°C, Polar
- Capacitance: 1000µF
- Voltage Rating: 63V
- Product Range: 118 AHT Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Axial Leaded
- Diameter: 21mm
- Lead Spacing: -
- Height: 38mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Lifetime @ Temperature: 8000 hours @ 125°C
- ESR: 0.16ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 1400mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- External Length / Height: 38mm
- Lead Diameter: 0.8mm
- Leakage Current: 130µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Operating life Time: 8000h
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 125°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 63V
- Voltage Rating V DC: 63V
