MAL211835221E3 Cap, 220µF, 16V, 20%, Through Hole Vishay

VISHAYUGS :MAL211835221E3 Code de commande:1695254

Prix:
Prix ​​promotionnel€6,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (528 unité)

Documents et téléchargements

description

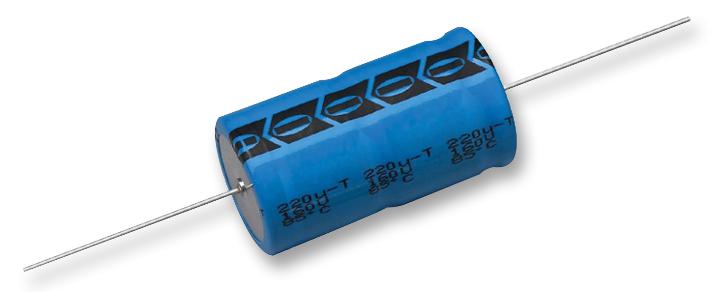

VISHAY - MAL211835221E3 - Electrolytic Capacitor, 220 µF, 16 V, ± 20%, Axial Leaded, 4000 hours @ 125°C, Polar

  • Capacitance: 220µF
  • Voltage Rating: 16V
  • Product Range: 118 AHT Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Axial Leaded
  • Diameter: 8mm
  • Lead Spacing: -
  • Height: 18mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 125°C
  • Lifetime @ Temperature: 4000 hours @ 125°C
  • ESR: 1.81ohm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • AC Ripple Current @ 100Hz: 145mA
  • Capacitance Tolerance ±: ± 20%
  • Capacitor Mounting: Through Hole
  • External Length / Height: 18mm
  • Lead Diameter: 0.8mm
  • Leakage Current: 11µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +125°C
  • Operating life Time: 4000h
  • Ripple Current Frequency: 100Hz
  • Ripple Current Temperature: 125°C
  • Tolerance +: 0.2%
  • Tolerance -: 0.2%
  • Voltage Rating DC Max: 16V
  • Voltage Rating V DC: 16V
