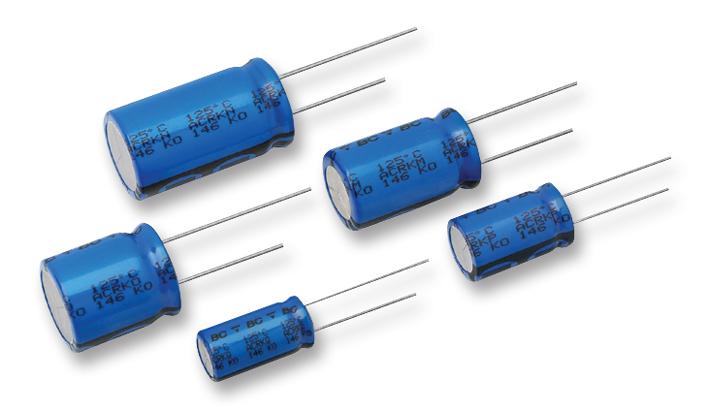

VISHAY - MAL214630471E3 - Electrolytic Capacitor, 470 µF, 35 V, ± 20%, Radial Leaded, 3000 hours @ 125°C, Polar
- Capacitance: 470µF
- Voltage Rating: 35V
- Product Range: 146 RTI Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 10mm
- Lead Spacing: 5mm
- Height: 20mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Lifetime @ Temperature: 3000 hours @ 125°C
- ESR: -
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 1250mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Dissipation Factor: 0.12%
- Dissipation Factor Frequency: 100Hz
- External Length / Height: 20mm
- Impedance: 0.06ohm
- Impedance Frequency: 100kHz
- Impedance Temperature: 20°C
- Lead Diameter: 0.6mm
- Leakage Current: 168µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +125°C
- Operating life Time: 3000h
- Ripple Current @ 105°C to 125°C: 1250mA
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 125°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 35V
- Voltage Rating V DC: 35V
