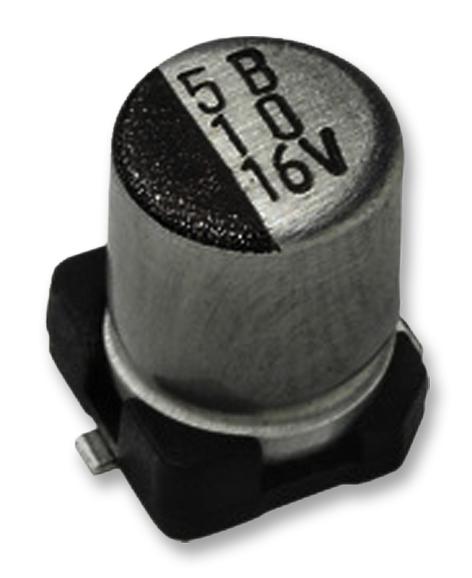

VISHAY - MAL215375109E3 - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 10 µF, 16 V, 8 ohm, 1000 hours @ 105°C
- AE Capacitor Case: Radial Can - SMD
- Capacitance: 10µF
- Voltage Rating: 16V
- ESR: 8ohm
- Product Range: 153 CRV Series
- Lifetime @ Temperature: 1000 hours @ 105°C
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Ripple Current AC: 16mA
- Diameter: 4mm
- Height: 5.3mm
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 16mA
- Capacitance Tolerance: ± 20%
- Capacitance Tolerance ±: ± 20%
- Capacitor Case Style: Radial Can - SMD
- Capacitor Mounting: SMD
- Capacitor Terminals: SMD
- ESR Frequency: 100kHz
- External Depth: 5.5mm
- External Length / Height: 5.3mm
- External Width: 4.5mm
- Leakage Current: 3µA
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 2000h
- Reel Quantity: 2000
- Ripple Current Frequency: 120Hz
- Ripple Current Temperature: 105°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 16V
- Voltage Rating V DC: 16V
