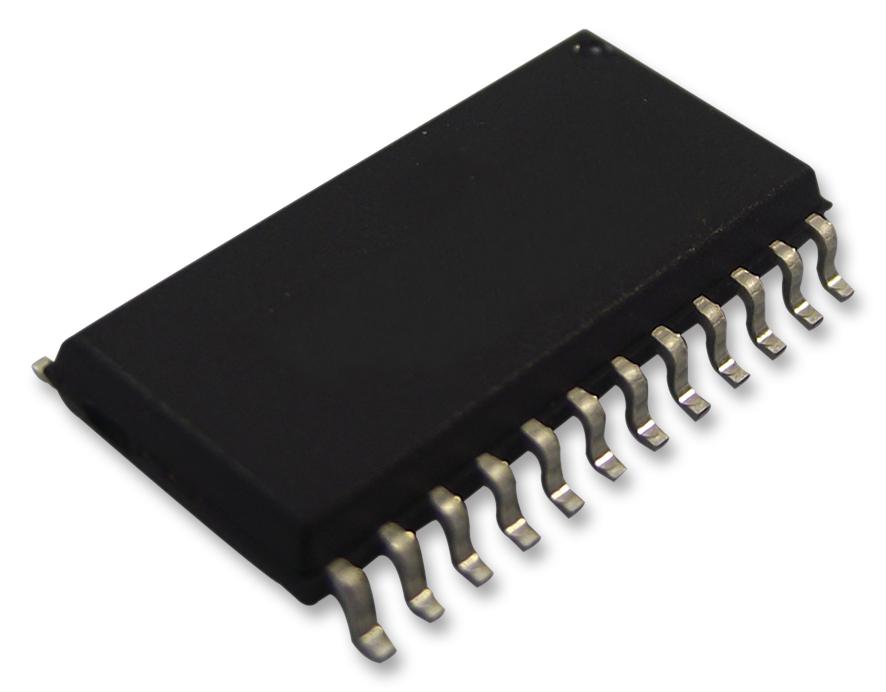

MAXIM INTEGRATED / ANALOG DEVICES - MAX7221CWG+ - LED Driver, 4V to 5.5V input, 8 Outputs, 10 MHz Switch. Frequency, 4.5V/320 mA out, SOIC-24
- Device Topology: -
- Input Voltage Min: 4V
- Input Voltage Max: 5.5V
- Output Voltage Max: -
- Output Current Max: 320mA
- Switching Frequency: 10MHz
- No. of Outputs: 8Outputs
- IC Mounting: SMD
- Driver Case Style: SOIC
- No. of Pins: 24Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 7221
- Character Type: 8 Digit
- Data / Control Interface: Serial 4 Wire
- Dimming Control Type: Analogue, Digital
- IC Temperature Range: Commercial
- Input Voltage: 4V to 5.5V
- LED Display Type: 7 Segment / Bar Graph
- LED Driver Application: Display, Panel Meters
- No. Segments: 7
- Operating Temperature Range: 0°C to +70°C
- Output Current: 320mA
- Output Voltage: 4.5V
- Topology: Common Cathode
