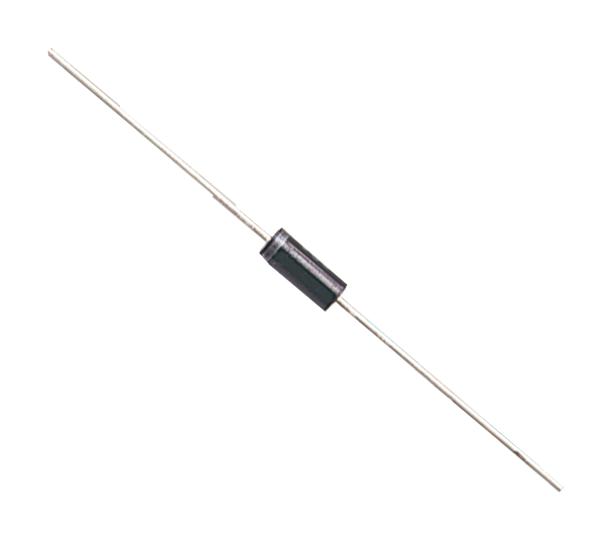

MBR3100RLG Diode, Schottky, 3a, 100V, Axial ONSEMI

ONSEMIUGS :MBR3100RLG Code de commande:1431061

Prix:
Prix ​​promotionnel€1,23

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (13702 unité)

Documents et téléchargements

description

ONSEMI - MBR3100RLG - Schottky Rectifier, 100 V, 3 A, Single, DO-201AD, 2 Pins, 790 mV

  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 3A
  • Diode Configuration: Single
  • Diode Case Style: DO-201AD
  • No. of Pins: 2Pins
  • Forward Voltage VF Max: 790mV
  • Forward Surge Current Ifsm Max: 150A
  • Operating Temperature Max: 175°C
  • Product Range: MBR31 Series
  • Automotive Qualification Standard: AEC-Q101
  • SVHC: Lead (27-Jun-2018)
  • Current Ifsm: 150A
  • Current Ir Max: 600µA
  • Diode Type: Schottky
  • Forward Voltage: 790mV
  • Junction Temperature Tj Max: 175°C
  • Operating Temperature Min: -65°C
  • Operating Temperature Range: -65°C to +175°C
  • Semiconductor Technology: Si
  • Termination Type: Axial Leaded
