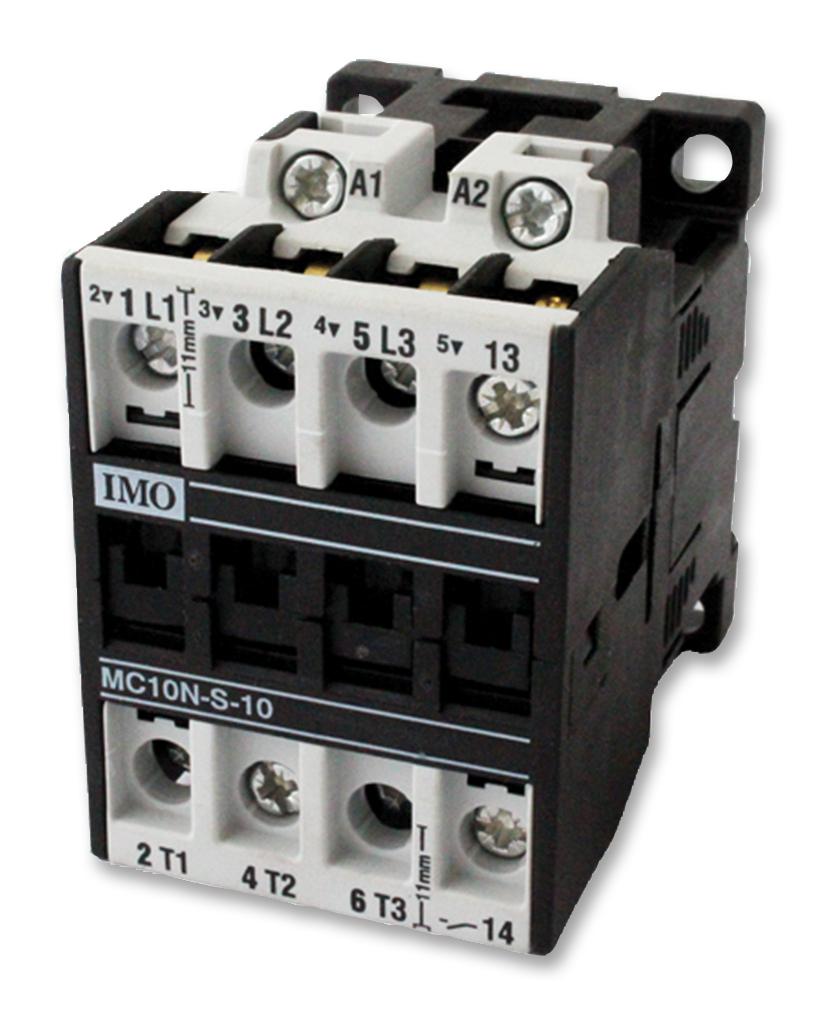

MC10N-S-10230AC Contactor, 4kW/10A, 230VAC IMO Precision Controls

IMO PRECISION CONTROLSUGS :MC10N-S-10230AC Code de commande:9940480

Prix:
Prix ​​promotionnel€55,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (8 unité)

Documents et téléchargements

description

IMO PRECISION CONTROLS - MC10N-S-10230AC - Contactor, 10 A, DIN Rail, 690 VAC, SPST-NO, 3 Pole, 5.5 kW

  • Load Current Inductive: 10A
  • Relay Mounting: DIN Rail
  • Operating Voltage: 690VAC
  • Contact Configuration: SPST-NO
  • No. of Poles: 3 Pole
  • Switching Power AC3: 5.5kW
  • Switching Current AC1: 25A
  • Coil Voltage VAC Nom: 230V
  • Coil Voltage VDC Nom: -
  • Switching Power AC1: 4kW
  • Load Current Resistive: 25A
  • Switching Current AC3: 10A
  • Product Range: MC Series
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: cUL
  • Approval Category: UL Recognised
  • Coil Holding Power: 10VA
  • Coil Operating Lower Percent Limit: 85%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Pull-in Power: 45VA
  • External Depth: 65mm
  • External Length / Height: 60mm
  • External Width: 45mm
  • Height: 60mm
  • Main Contact Current AC1 Max: 25A
  • Main Contact Current AC3 Max: 10A
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -40°C
  • Relay Type: Contactor
