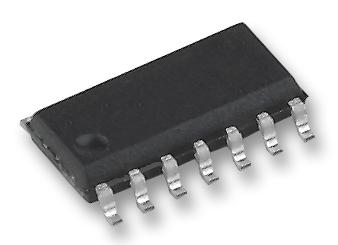

ONSEMI - MC14070BDG - Logic IC, XOR (Exclusive OR), Quad, 2 Inputs, 14 Pins, SOIC, 4070
- Logic Family / Base Number: MC14070
- Logic Type: XOR
- Output Current: 8.8mA
- No. of Inputs: 2
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Logic IC Family: MC140
- Logic IC Base Number: 4070
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 14070
- IC Generic Number: 4070
- Logic Function Number: 14070
- Logic IC Base Number: 4070
- Logic IC Function: Quadruple 2-Input Exclusive-OR Gate
- No. of Gates: 4
- Operating Temperature Range: -55°C to +125°C
- Supply Voltage: 15V
- Supply Voltage Range: 3V to 18V
