MC33168 Fuse, PTC Reset, Radial, 30V, 9A multicomp Pro

MULTICOMP PROUGS :MC33168 Code de commande:1800725

Prix:
Prix ​​promotionnel€1,06

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (504 unité)

Documents et téléchargements

description

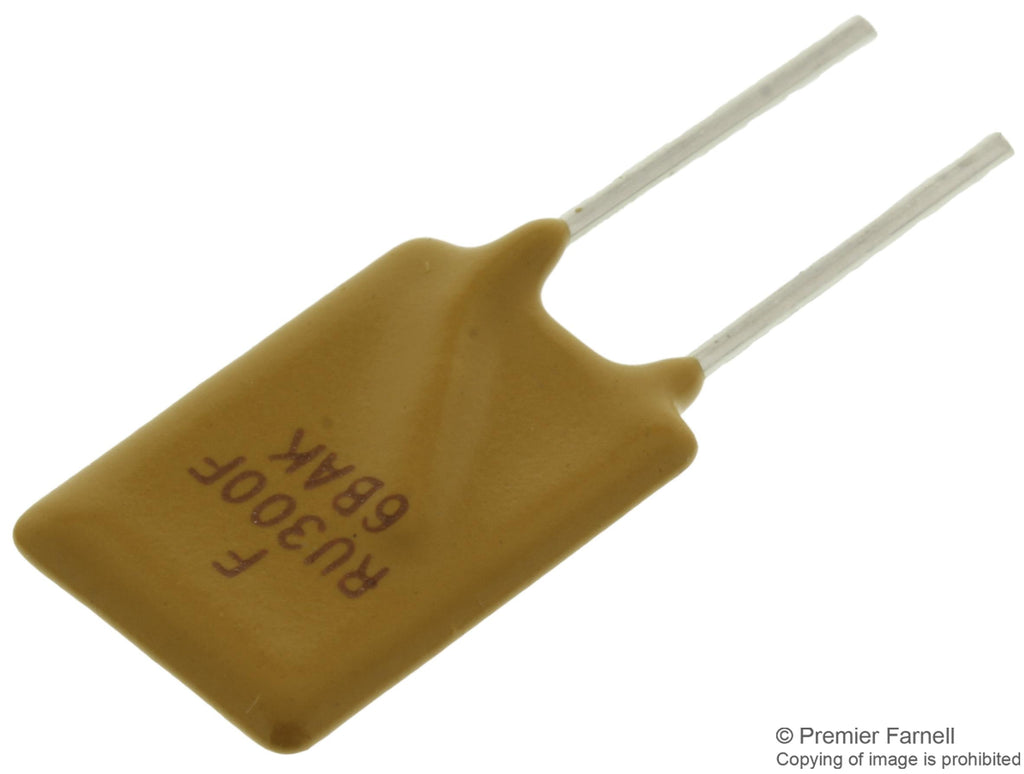

MULTICOMP PRO - MC33168 - Resettable Fuse, PPTC, MC33, 30 VDC, 9 A, 18 A, 20 s, Rectangular

  • Thermistor Mounting: Through Hole
  • Product Range: MC33 Series
  • Holding Current: 9A
  • Tripping Current: 18A
  • Voltage Rating: 30VDC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Carrying Current Max: 40A
  • Current Max: 40A
  • External Depth: 3mm
  • External Length / Height: 29.7mm
  • External Width: 24.1mm
  • Height: 29.7mm
  • Holding Current Max Ih: 9A
  • Initial Resistance Max: 0.02ohm
  • Initial Resistance Min: 0.005ohm
  • Lead Length: 7.6mm
  • Lead Spacing: 10.2mm
  • Operating Voltage: 30VDC
  • Operating Voltage Max: 30VDC
  • PTC Fuse Case Style: Radial Leaded
  • Voltage: 30V
