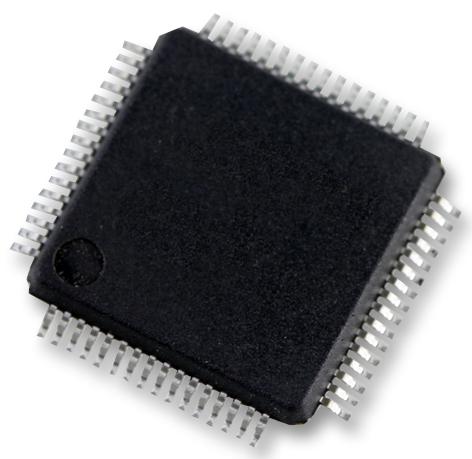

NXP - MC9S08AC32CPUE - 8 Bit MCU, S08 Family S08AC Series Microcontrollers, 40 MHz, 32 KB, 2 KB, 64 Pins, LQFP
- Product Range: S08 Family S08AC Series Microcontrollers
- CPU Speed: 40MHz
- Program Memory Size: 32KB
- RAM Memory Size: 2KB
- No. of Pins: 64Pins
- MCU Case Style: LQFP
- No. of I/O's: 54I/O's
- Embedded Interface Type: I2C, SCI, SPI
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: S08
- MCU Series: S08AC
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: Flexis - S08AC
- Flash Memory Size: 32KB
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: COP, CRC, POR
- No. of ADC Inputs: 16
- No. of Bits: 8bit
- No. of External Interrupts: 8
- No. of PWM Channels: 10
- No. of Timers: 3
- Number of bits In Timer: 16
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC
- Program Memory Size: 32KB
- Serial Comms: 2 SCI, SPI, I2C
- Supply Voltage Range: 2.7V to 5.5V
