MCDHN-04F-V Switch, 4 Way, SPST, Flush multicomp Pro

MULTICOMP PROUGS :MCDHN-04F-V Code de commande:1605474

Prix:
Prix ​​promotionnel€3,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (22258 unité)

Documents et téléchargements

description

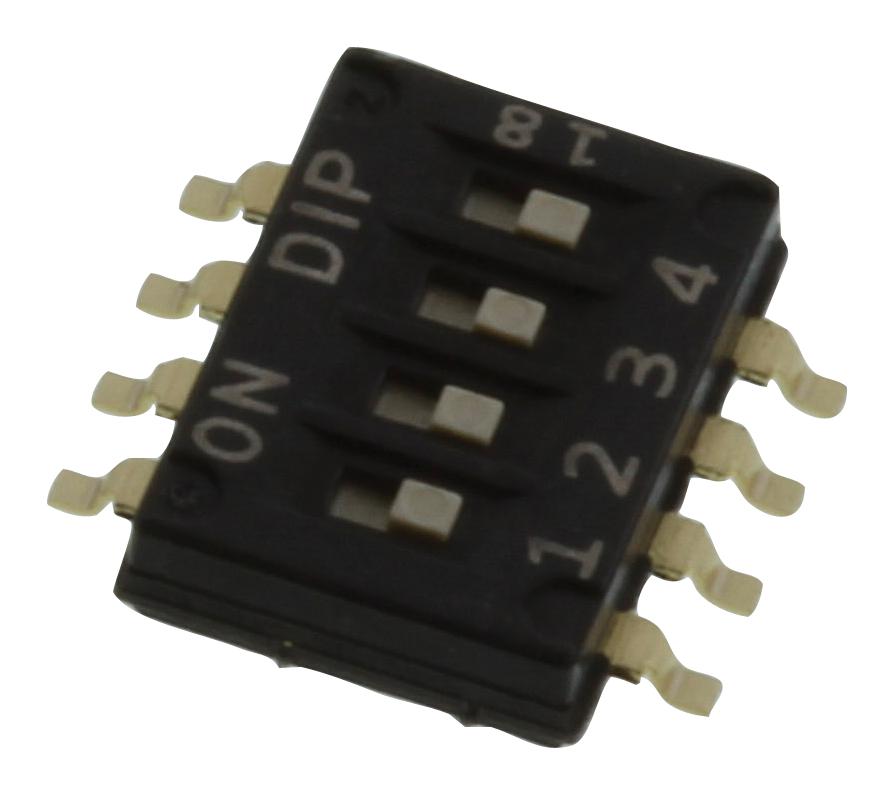

MULTICOMP PRO - MCDHN-04F-V - DIP / SIP Switch, 4 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mA

  • No. of Circuits: 4Circuits
  • Switch Actuator Style: Slide
  • Switch Mounting: SMD
  • Contact Configuration: SPST
  • Contact Voltage DC Max: 24VDC
  • Contact Current DC Max: 25mA
  • Product Range: MCDHN Series
  • Switch Type: DIP Unsealed
  • SVHC: No SVHC (15-Jan-2019)
  • Contact Resistance: 100mohm
  • Dielectric Strength VDC: 300VAC
  • External Diameter: 4.5mm
  • External Length / Height: 1.5mm
  • No. of Electrical Operations: 1000
  • No. of Mechanical Operations: 1000
  • Operating Force: 500gf
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Pitch Spacing: 1.27mm
  • Storage Temperature Max: 85°C
  • Storage Temperature Min: -40°C
