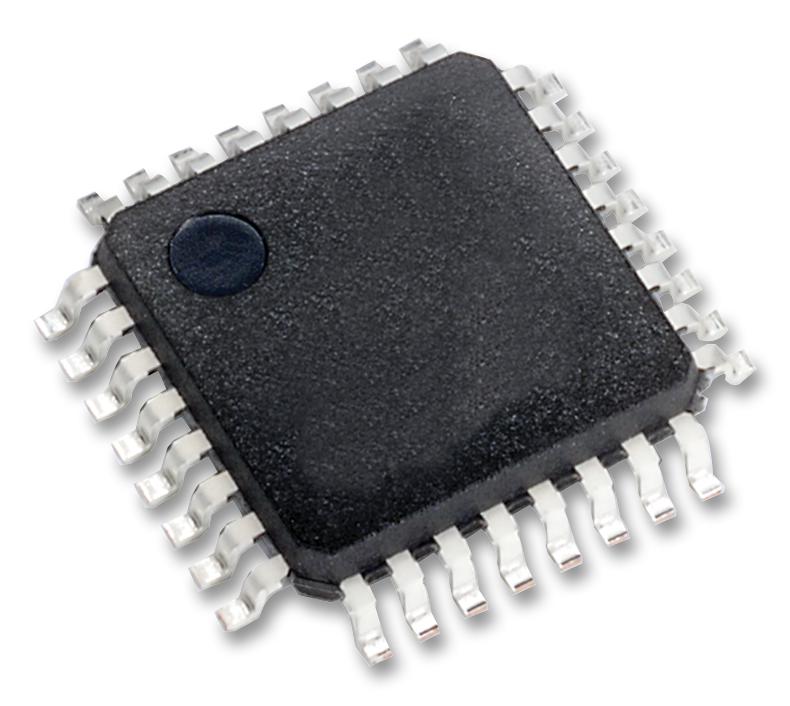

NXP - MCHC908GR8CFAE - 8 Bit MCU, HC08 Family HC08GR Series Microcontrollers, 8 MHz, 8 KB, 32 Pins, LQFP
- Product Range: HC08 Family HC08GR Series Microcontrollers
- CPU Speed: 8MHz
- Program Memory Size: 8KB
- RAM Memory Size: 384Byte
- No. of Pins: 32Pins
- MCU Case Style: LQFP
- No. of I/O's: 21I/O's
- Embedded Interface Type: I2C, SCI, SPI
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 3.3V
- MCU Family: HC08
- MCU Series: HC08GR
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Clock Frequency: 8.2MHz
- Controller Family/Series: HC08G
- Flash Memory Size: 8KB
- IC Generic Number: 908GR8
- Logic Function Number: 8CFAE
- MPU Core Size: 8bit
- Memory Type: Flash
- Microprocessor/Controller Features: SCI & SPI interface modules, 6-channel 8-bit successive approximation ADC
- No. of ADC Inputs: 6
- No. of Bits: 8bit
- No. of PWM Channels: 3
- No. of Timers: 2
- Number of bits in ADC: 8
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: Crystal
- Peripherals: ADC, PWM
- Program Memory Size: 8KB
