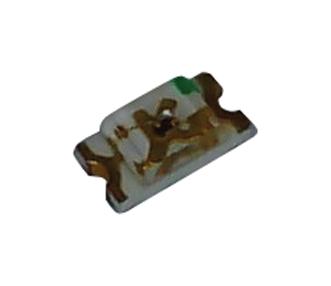

MULTICOMP PRO - MCL-S270GC - LED, Green, SMD, 0805 [2012 Metric], 20 mA, 2.1 V, 570 nm
- LED Colour: Green
- LED Mounting: SMD
- LED Case Size: 0805
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Wavelength Typ: 570nm
- Luminous Intensity: 10mcd
- Viewing Angle: 140°
- Lens Shape: Rectangular
- Product Range: GaP Green
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: 1.25mm x 1.4mm
- Current Rating: 20mA
- Dominant Wavelength: 570nm
- Dominant Wavelength Typ: 570nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.6V
- LED / Lamp Size: 1.4mm x 1.25mm
- LED Type: Standard
- Luminous Intensity Max: 16mcd
- Luminous Intensity Min: 4.5mcd
- Luminous Intensity Typ: 10mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 100mA
- Peak Wavelength: 568nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: +100°C
- Storage Temperature Min: -40°C
- Voltage Vf Min: 1.7V
- Voltage Vf Typ: 2.1V
