MCL053SWC-YH1 LED, 5mm, 16°, White multicomp Pro

MULTICOMP PROUGS :MCL053SWC-YH1 Code de commande:1581186

Prix:
Prix ​​promotionnel€0,90

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4758 unité)

Documents et téléchargements

description

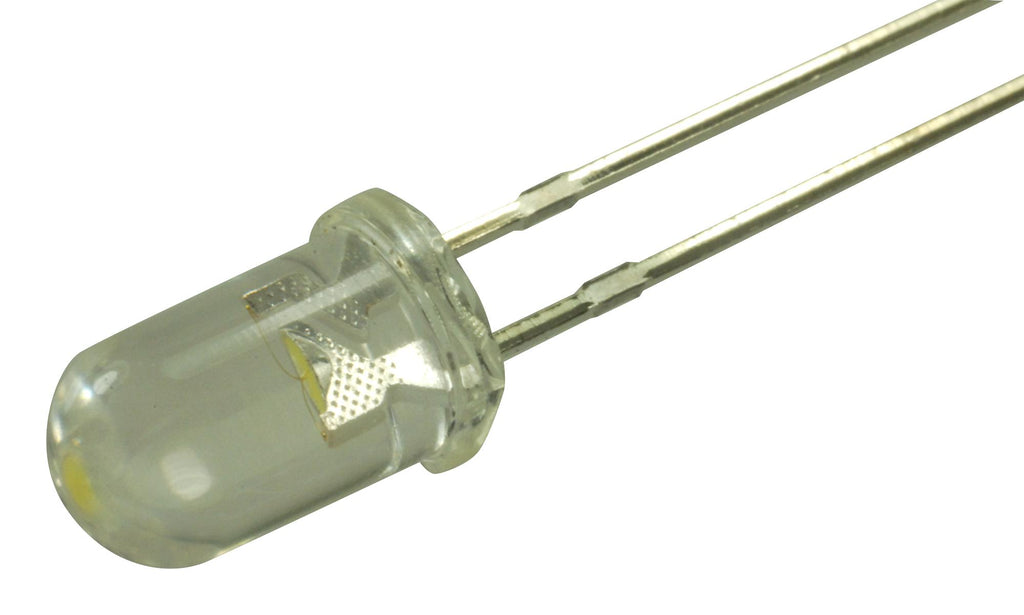

MULTICOMP PRO - MCL053SWC-YH1 - LED, Warm White, Through Hole, T-1 3/4 (5mm), 20 mA, 3.4 V, 10 cd

  • LED Colour: White
  • LED Mounting: Through Hole
  • Bulb Size: T-1 3/4 (5mm)
  • Forward Current If: 20mA
  • Forward Voltage: 3.4V
  • Luminous Intensity: 10cd
  • Viewing Angle: 16°
  • Lens Shape: Round
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Current Rating: 20mA
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 4V
  • LED / Lamp Size: 5mm / T-1 3/4
  • LED Type: Standard
  • Luminous Intensity Max: 15000mcd
  • Luminous Intensity Min: 4500mcd
  • Luminous Intensity Typ: 10000mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Power Dissipation Pd: 85mW
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 2.7V
  • Voltage Vf Typ: 3.4V
