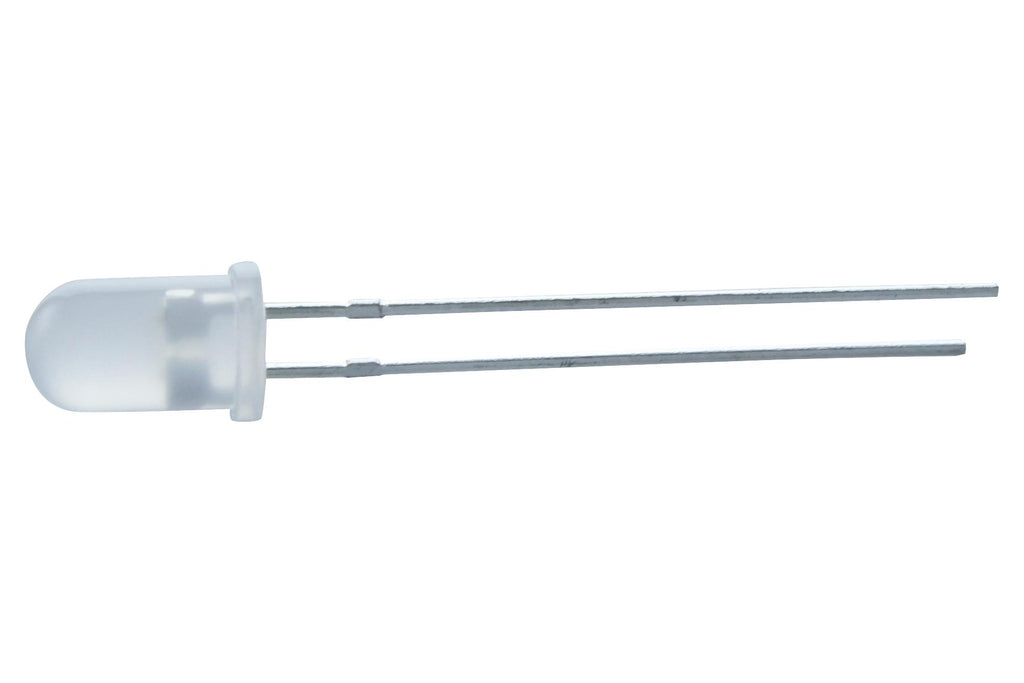

MCL056YGW LED, 5mm, AC, Yellow/GRN multicomp Pro

MULTICOMP PROUGS :MCL056YGW Code de commande:1581209

Prix:
Prix ​​promotionnel€0,47

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1707 unité)

Documents et téléchargements

description

MULTICOMP PRO - MCL056YGW - LED, Green, Yellow, Through Hole, T-1 3/4 (5mm), 45 °, Round, Y 20mA, G 20mA

  • LED Colour: Green, Yellow
  • LED Mounting: Through Hole
  • Bulb Size: T-1 3/4 (5mm)
  • Viewing Angle: 45°
  • Lens Shape: Round
  • Forward Current / Colour: Y 20mA, G 20mA
  • Luminous Intensity / Colour: Y 15mcd, G 14mcd
  • Forward Voltage / Colour: Y 2.1V, G 2.1V
  • Wavelength / Colour: R 590nm, G 570nm
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Dominant Wavelength: 590nm
  • Forward Voltage VF Max: 2.6V
  • LED Type: Standard
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
