MCL293GD LED, 5MMX5MM, 150°, Green multicomp Pro

MULTICOMP PROUGS :MCL293GD Code de commande:1581161

Prix:
Prix ​​promotionnel€0,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (966 unité)

Documents et téléchargements

description

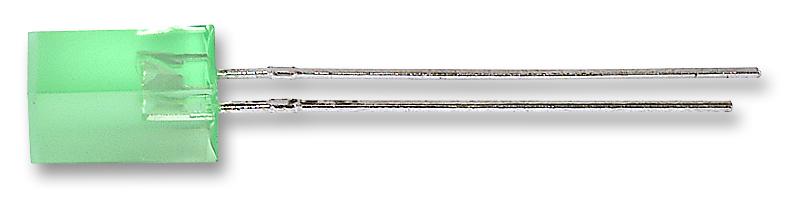

MULTICOMP PRO - MCL293GD - LED, Green, Through Hole, 5mm x 5mm, 20 mA, 2.1 V, 570 nm

  • LED Colour: Green
  • LED Mounting: Through Hole
  • LED Case Size: 5mm x 5mm
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Wavelength Typ: 570nm
  • Luminous Intensity: 3.2mcd
  • Viewing Angle: 150°
  • Lens Shape: Square
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Bulb Size: 5mm x 5mm
  • Current Rating: 20mA
  • Dominant Wavelength: 570nm
  • Dominant Wavelength Typ: 570nm
  • Forward Current If Max: 20mA
  • Forward Voltage VF Max: 2.6V
  • LED / Lamp Size: 5mm x 5mm
  • LED Type: Standard
  • Luminous Intensity Max: 4.8mcd
  • Luminous Intensity Min: 1.5mcd
  • Luminous Intensity Typ: 3.2mcd
  • No. of Pins: 2Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +85°C
  • Peak Forward Current: 100mA
  • Peak Wavelength: 568nm
  • Reverse Protection Voltage: 5V
  • Storage Temperature Max: +100°C
  • Storage Temperature Min: -40°C
  • Voltage Vf Min: 1.7V
  • Voltage Vf Typ: 2.1V
