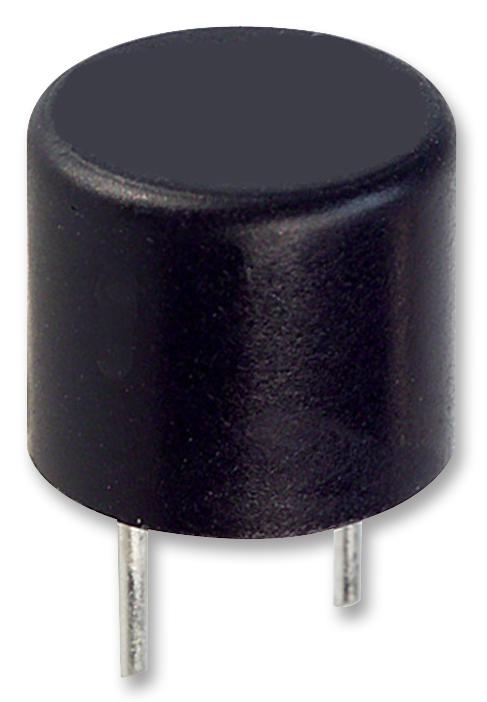

MULTICOMP PRO - MCMET 200MA 250V - Fuse, PCB Leaded, 200 mA, 250 VAC, Slow Blow, Radial Leaded
- Fuse Current: 200mA
- Voltage Rating VAC: 250VAC
- Product Range: -
- Voltage Rating V DC: -
- Blow Characteristic: Slow Blow
- Fuse Case Style: Radial Leaded
- Breaking Capacity Current AC: 35A
- Breaking Capacity Current DC: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CCC, CSA, SEMKO, VDE, VDE
- Approval Category: UL Recognised
- Body Diameter: 8.35mm
- Breaking Capacity: 35A @ 250V AC
- Case Material: Thermoplastic
- External Length / Height: 7.7mm
- Flammability Rating: UL 94-V0
- Fuse Breaking Capacity Voltage AC: 250VAC
- Fuse Mounting: Through Hole
- Fuse Size Imperial: 0.33" x 0.3"
- Fuse Size Metric: 8.35mm x 7.7mm
- Fuse Type Blowing Characteristic: Slow Blow
- Lead Diameter: 0.62mm
- Lead Length: 22mm
- Lead Spacing: 5.08mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
