MCMHR16V106M4X7 Cap, 10µF, 16V, 20% multicomp Pro

MULTICOMP PROUGS :MCMHR16V106M4X7 Code de commande:9452591

Prix:
Prix ​​promotionnel€0,17

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (16162 unité)

Documenten en downloads

description

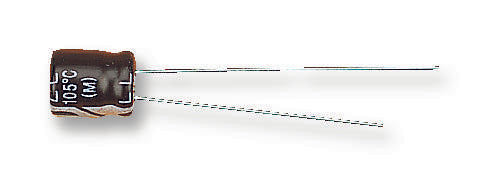

MULTICOMP PRO - MCMHR16V106M4X7 - Electrolytic Capacitor, 10 µF, 16 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar

  • Capacitance: 10µF
  • Voltage Rating: 16V
  • Product Range: MCMHR Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 4mm
  • Lead Spacing: 1.5mm
  • Height: 7mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Lifetime @ Temperature: 1000 hours @ 105°C
  • ESR: -
  • Automotive Qualification Standard: -
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 7mm
  • Frequency Tolerance: 120Hz
  • Lead Diameter: 0.45mm
  • Leakage Current: 3µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +105°C
  • Operating life Time: 1000h
  • Ripple Current AC: 30mA
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 20%
  • Tolerance -: 20%
  • Tolerance Temperature: 20°C
  • Voltage Rating V DC: 16V
