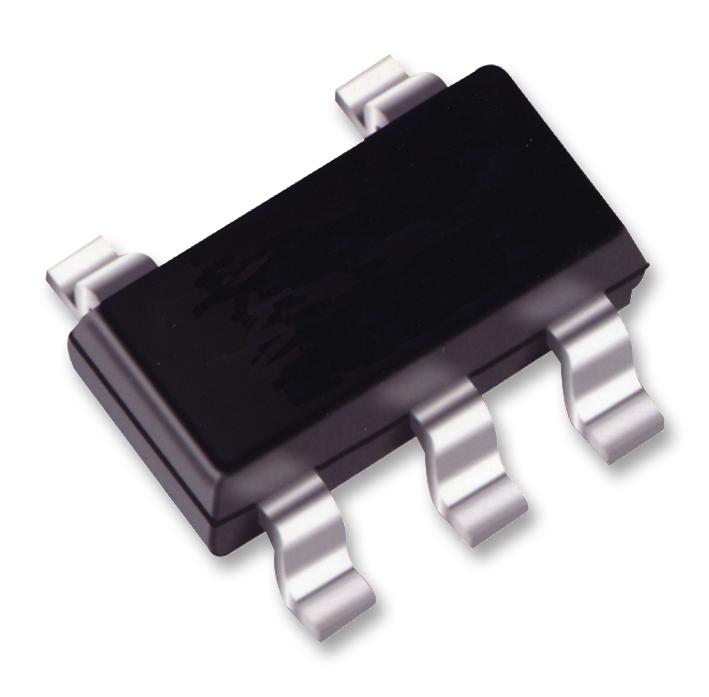

MICROCHIP - MCP6001T-I/OT - Operational Amplifier, Single, 1 Amplifier, 1 MHz, 0.6 V/µs, 1.8V to 6V, SOT-23, 5 Pins
- No. of Amplifiers: 1 Amplifier
- Bandwidth: 1MHz
- Slew Rate: 0.6V/µs
- Supply Voltage Range: 1.8V to 6V
- Amplifier Case Style: SOT-23
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: MCP6001/1R/1U/2/4
- Automotive Qualification Standard: AEC-Q100
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Amplifer Supply Voltage: 1.8V to 5.5V
- Amplifier Type: CMOS
- Base Number: 6001
- Current Iqc Max: 170µA
- Current Iqc Typ: 100mA
- Device Marking: MCP6001T-I/OT
- Gain Bandwidth: 1MHz
- I/O Type: Rail-Rail I/O
- IC Generic Number: 6001
- Input Offset Drift Max: 2µV/°C
- Input Offset Voltage Max: 7mV
- Logic Function Number: 6001
- No. of Amplifiers: 1Amplifiers
- Op Amp Type: General Purpose
- Operating Temperature Range: -40°C to +85°C
- Operational Amplifier Features: Rail-to-Rail Op Amp
- Supply Voltage + Nom: 5.5V
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 1.8V
