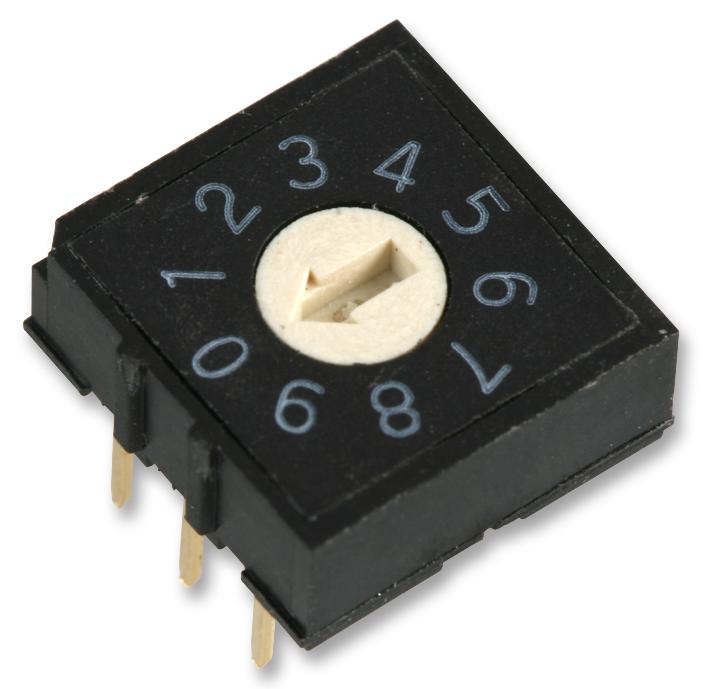

MULTICOMP PRO - MCRH2AF-10R - Rotary Coded Switch, Through Hole, 10 Position, 24 VDC, BCD, 25 mA
- No. of Switch Positions: 10 Position
- No. of Poles: 2 Pole
- Angle of Throw: 36°
- Contact Current AC Max: -
- Contact Voltage AC Max: 250V
- Product Range: MCRH Series
- Illumination: Non Illuminated
- Contact Current DC Max: 25mA
- Contact Voltage DC Max: 50V
- SVHC: No SVHC (15-Jan-2019)
- Actuator Level: Flushed
- Bezel Depth: 9.8mm
- Bezel Width: 9.8mm
- Contact Current Rating: 25mA
- Contact Resistance: 200mohm
- External Depth: 10mm
- External Length / Height: 4.1mm
- External Width: 10mm
- Flammability Rating: UL 94V-0
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 250VDC
- No. of Electrical Operations: 20000
- No. of Mechanical Operations: 20000
- Operating Force Max: 400gf
- Operating Temperature Max: 80°C
- Operating Temperature Min: -25°C
- Output Code: BCD
- Pin Configuration: 3 x 2
- Proof Voltage: 250VAC
- Switch Mounting: Through Hole
- Switching Current: 25mA
- Switching Voltage: 24VDC
- Termination Method: Through Hole
