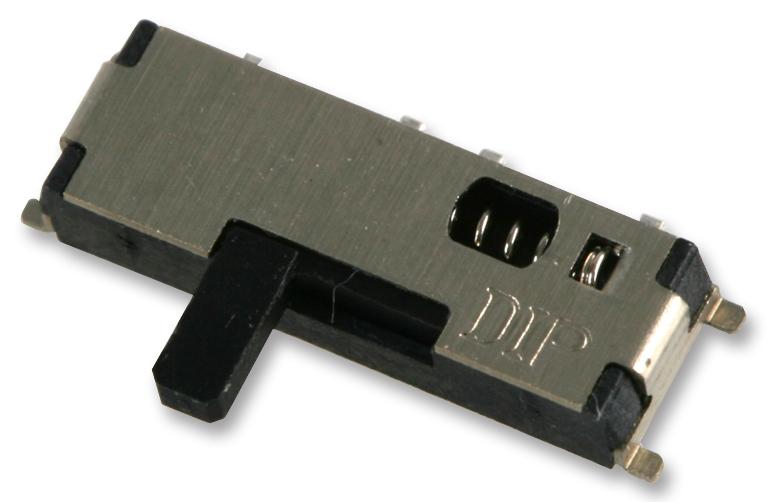

MCSSS-12LG Slide Switch, SMD, On-Mom multicomp Pro

MULTICOMP PROUGS :MCSSS-12LG Code de commande:1522052

Prix:
Prix ​​promotionnel€1,82

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1039 unité)

Documents et téléchargements

description

MULTICOMP PRO - MCSSS-12LG - Slide Switch, SPDT, On-(On), Panel Mount, MCSSS, 25 mA

  • Contact Configuration: SPDT
  • Switch Operation: On-(On)
  • Switch Mounting: Panel
  • Product Range: MCSSS Series
  • Contact Current Max: 25mA
  • Contact Voltage AC Max: -
  • Contact Voltage DC Max: 24V
  • Orientation: Horizontal
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Lever
  • Actuator Type: Hinge Lever
  • Contact Current DC Max: 25mA
  • Contact Resistance: 70mohm
  • Dielectric Strength VDC: 100VAC
  • External Depth: 3.5mm
  • External Length / Height: 2mm
  • External Width: 11mm
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 100VDC
  • Lever Length: 2.5mm
  • No. of Electrical Operations: 10000
  • Operating Force: 1.77N
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -10°C
