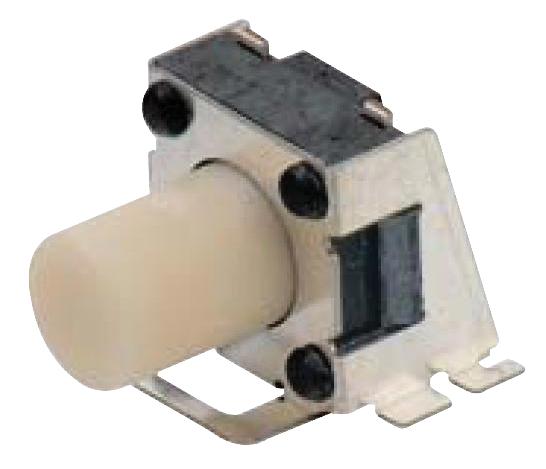

MULTICOMP PRO - MCTA3-1R3-V - Tactile Switch, MCTA3, Side Actuated, Surface Mount, Round Button, 260 gf, 50mA at 12VDC
- Product Range: MCTA3 Series
- Actuator Orientation: Side Actuated
- Switch Mounting: SMD
- Actuator Style: Round Button
- Actuating Force: 260gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 6mm x 6mm
- IP Rating: IP57
- Illumination: Non Illuminated
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Side
- Actuator / Cap Colour: Red
- Colour: Red
- Contact Configuration: SPST
- Contact Current DC Max: 1.5mA
- Contact Current Max: 1.5mA
- Contact Resistance Max: 100mohm
- Contact Voltage DC Max: 5VDC
- Contact Voltage DC Nom: 5V
- Current Rating: 1.5mA
- External Length / Height: 6.5mm
- External Width: 6.31mm
- Insulation Resistance Voltage: 500VDC
- No. of Electrical Operations: 200000
- Operating Force: 260gf
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Shaft Diameter: 3.55mm
- Switch Terminals: Solder
- Travel: 0.15mm
