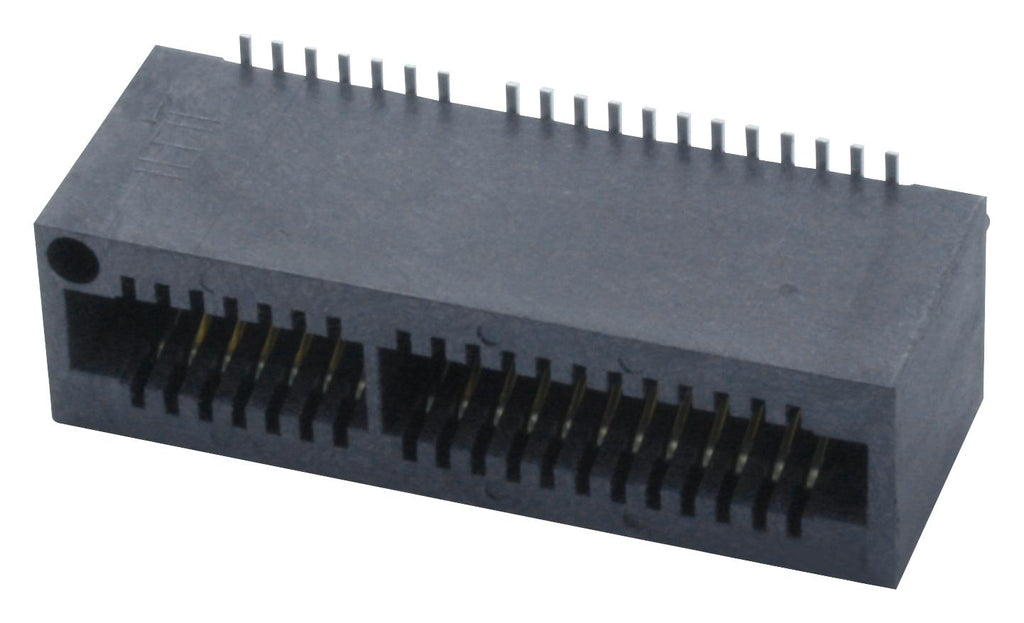

SAMTEC - MEC1-120-02-S-D-A - Card Edge Connector, 15 & 16 Pins Polarized, Dual Side, 1.57 mm, 40 Contacts, Surface Mount
- Product Range: MEC1 Series
- No. of Contacts: 40Contacts
- Card Edge / Backplane Connector Type: Card Edge
- Pitch Spacing: 1mm
- Gender: Receptacle
- Contact Termination Type: Surface Mount
- No. of Rows: 2Rows
- Row Pitch: 1.83mm
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- SVHC: No SVHC (15-Jan-2018)
- Colour: Black
- Connector Type: Card Edge
- Contact Termination: Surface Mount Vertical
- Current Rating: 2A
- Lead Spacing: 1mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 300V
