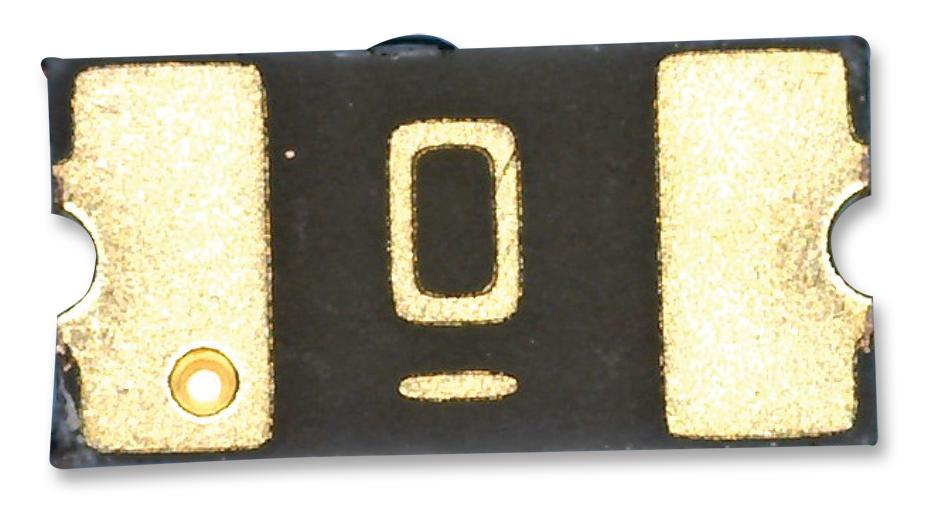

BOURNS - MF-NSMF012-2 - Resettable Fuse, PPTC, 1206 (3216 Metric), MF-NSMF, 30 VDC, 120 mA, 290 mA, 0.2 s
- Thermistor Mounting: SMD
- Product Range: MF-NSMF Series
- Holding Current: 120mA
- Tripping Current: 290mA
- Voltage Rating: 30V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 10A
- Current Max: 10A
- Current Temperature: 23°C
- External Depth: 1.4mm
- External Length / Height: 0.7mm
- External Width: 3mm
- Holding Current Max Ih: 0.12A
- Initial Resistance Max: 8.5ohm
- Initial Resistance Min: 1.35ohm
- Operating Voltage: 30V
- PTC Fuse Case Style: 1206 [3216 Metric]
- Resistance @ 10% Rated Current Typ: 8.5ohm
- Resistance @ Temperature: 1.35ohm
- Resistance Temperature: 23°C
- Tab Width: 0.25mm
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
- Trip Time: 0.2s
