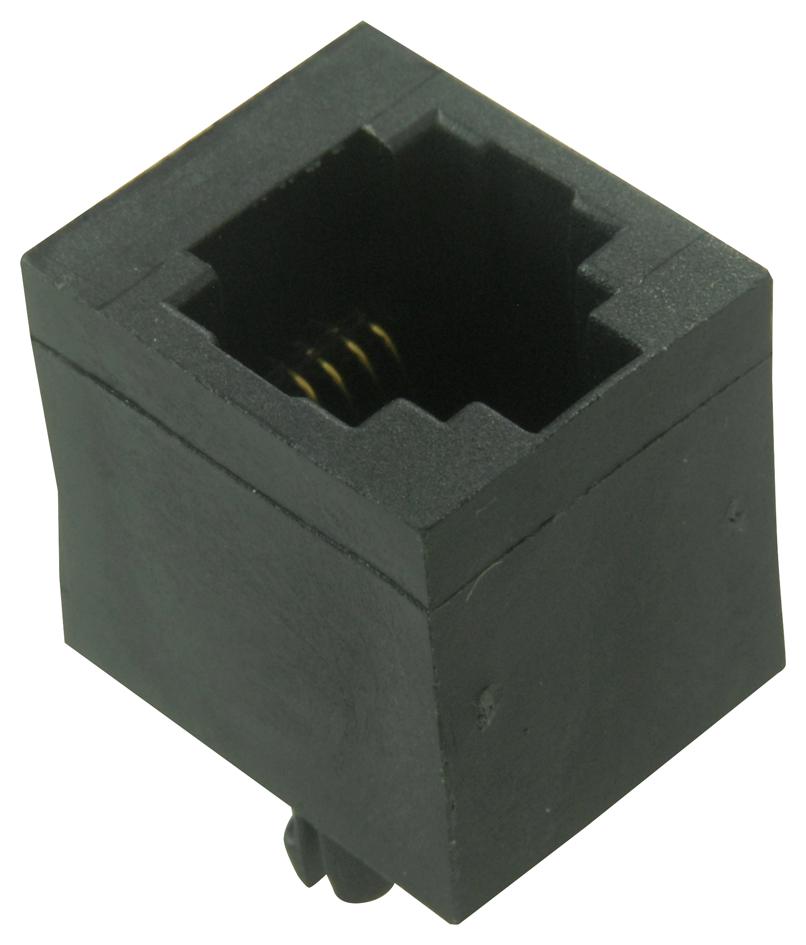

MHRJJ66NFV Modular, Jack, Vertical, RJ12, 6P6C mH Connectors

MH CONNECTORSUGS :MHRJJ66NFV Code de commande:3938414

Prix:
Prix ​​promotionnel€2,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (32875 unité)

Documents et téléchargements

description

MH CONNECTORS - MHRJJ66NFV - Modular Connector, Modular Jack, 1 x 1 (Port), 6P6C, Through Hole Mount

  • Modular Connector Type: Modular Jack
  • Port Configuration: 1 x 1 Port
  • No. of Positions / Loaded Contacts (per Port): 6P6C
  • LAN Category: -
  • IP Rating: -
  • Connector Mounting: Through Hole Mount
  • Connector Orientation: Vertical
  • Shielding: Unshielded
  • Magnetics: Without Magnetics
  • LEDs: Without LED
  • Light Pipes: Without Light Pipe
  • Product Range: MHRJJ Series
  • SVHC: No SVHC (27-Jun-2018)
  • Connector Type: RJ12
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Contact Termination: Through Hole Vertical
  • Contact Termination Type: Through Hole
  • Flammability Rating: UL94V-0
  • Gender: Jack
  • Insulator Material: PET (Polyester)
  • No. of Contacts: 6Contacts
  • No. of Ports: 1Ports
  • No. of Positions: 6Ways
  • Pitch Spacing: 2.54mm
