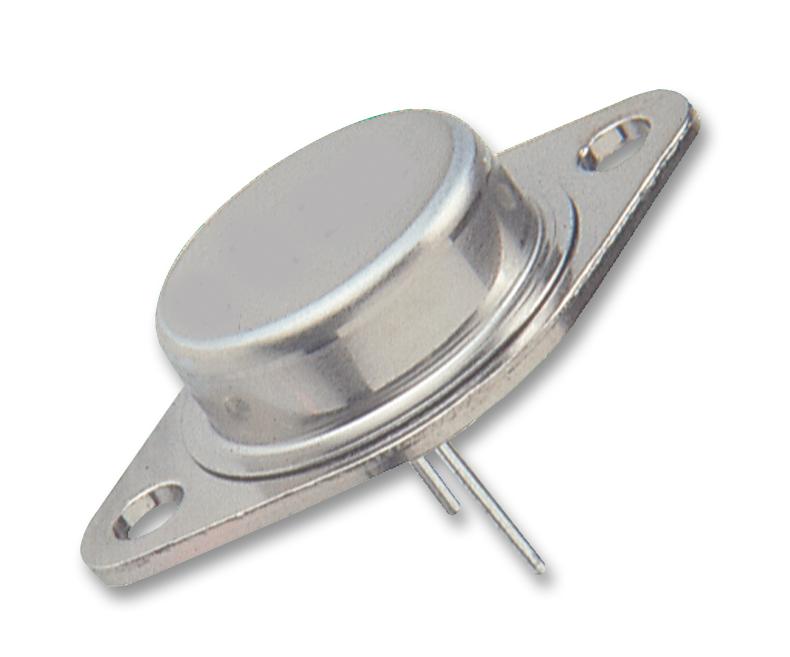

ONSEMI - MJ21194G - Bipolar (BJT) Single Transistor, Audio, NPN, 250 V, 16 A, 250 W, TO-3, Through Hole
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 250V
- Transition Frequency ft: 4MHz
- Power Dissipation Pd: 250W
- DC Collector Current: 16A
- DC Current Gain hFE: 75hFE
- Transistor Case Style: TO-3
- No. of Pins: 2Pins
- Operating Temperature Max: 200°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Alternate Case Style: TO-204AA
- Av Current Ic: 16A
- Collector Emitter Saturation Voltage Vce(on): 1.4V
- Continuous Collector Current Ic Max: 16A
- Current Ic Continuous a Max: 16A
- Current Ic hFE: 8A
- Device Marking: MJ21194
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 4MHz
- Gain Bandwidth ft Typ: 4MHz
- Hfe Min: 25
- No. of Transistors: 1
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +200°C
- Power Dissipation Ptot Max: 250W
- Pulsed Current Icm: 30A
- Voltage Vcbo: 400V
