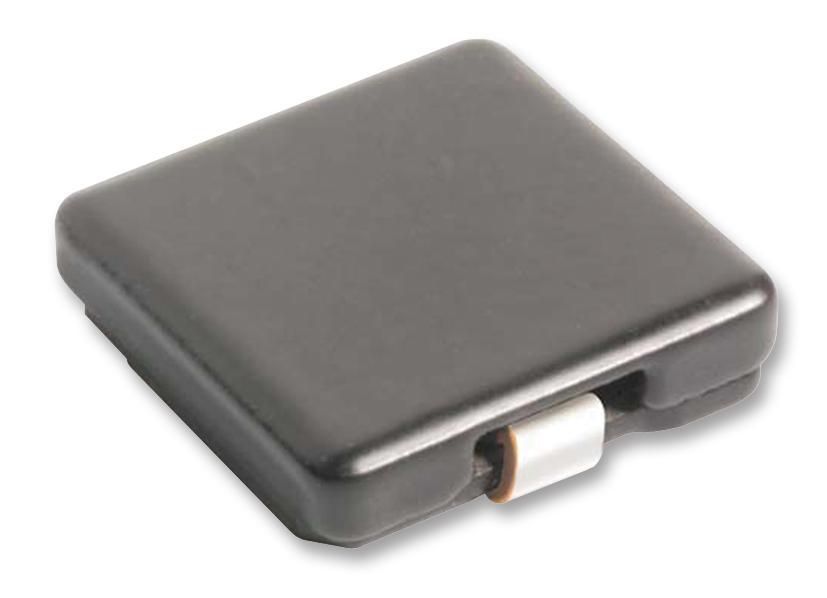

COILCRAFT - MLC1550-252MLC - Power Inductor (SMD), 2.5 µH, 15.8 A, Shielded, 17.7 A, MLC12xx
- Inductance: 2.5µH
- RMS Current (Irms): 15.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 17.7A
- Product Range: MLC12xx Series
- Power Inductor Case: 13.8mm x 13.2mm x 5.2mm
- DC Resistance Max: 2.5ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 45MHz
