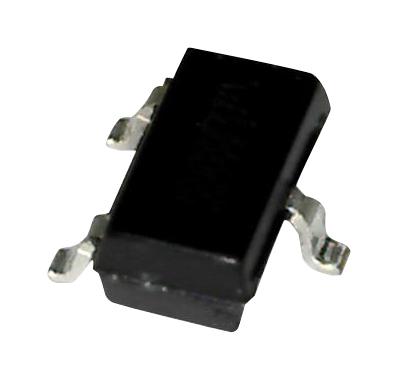

ONSEMI - MMBF170LT1G - Power MOSFET, N Channel, 60 V, 500 mA, 5 ohm, SOT-23, Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 500mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 5ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 3V
- Power Dissipation Pd: 225mW
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Current Id Max: 500mA
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Termination Type: Surface Mount Device
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
