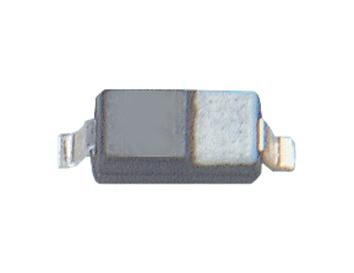

ONSEMI - MMSD701T1G - RF Schottky Diode, Barrier, Single, 70 V, 200 mA, 500 mV, 0.5 pF, SOD-123
- Diode Configuration: Single
- Reverse Voltage Vr: 70V
- Forward Current If Max: 200mA
- Forward Voltage VF Max: 500mV
- Capacitance Ct: 0.5pF
- Diode Case Style: SOD-123
- No. of Pins: 2 Pin
- Product Range: MMSD7 Series
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q101
- Current Ir Max: 0.2µA
- Diode Type: Schottky
- Forward Current If(AV): 200mA
- Junction Temperature Tj Max: 125°C
- No. of Pins: 2Pins
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Repetitive Reverse Voltage Vrrm Max: 70V
- Termination Type: Surface Mount Device
