Mp-13-60-1 DGZ RF Coaxial, BNC, Straight Jack, 50ohm multicomp Pro

MULTICOMP PROUGS :MP-13-60-1 DGZ Code de commande:1712351

Prix:
Prix ​​promotionnel€6,49

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1402 unité)

Documents et téléchargements

description

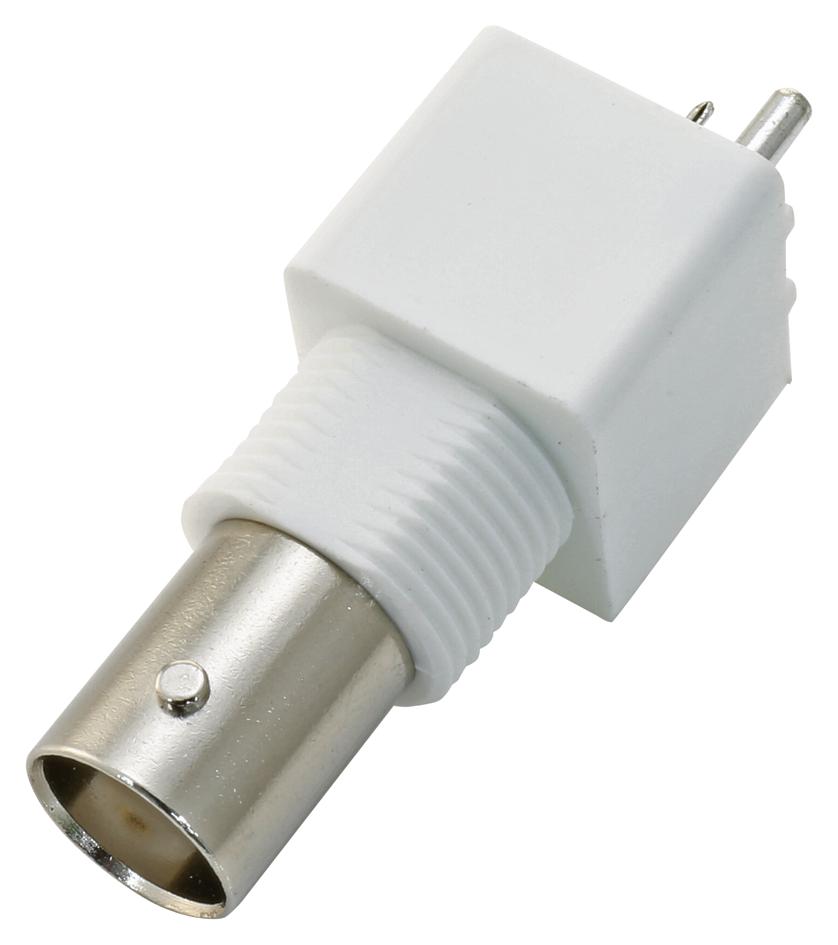

MULTICOMP PRO - MP-13-60-1 DGZ - RF / Coaxial Connector, BNC Coaxial, Straight Jack, Through Hole Vertical, 50 ohm, Phosphor Bronze

  • Connector Type: BNC Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Through Hole Vertical
  • Impedance: 50ohm
  • Coaxial Cable Types: -
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 1GHz
  • Connector Mounting: PCB Mount
  • Product Range: -
  • SVHC: Lead (15-Jan-2019)
  • Connector Mounting Orientation: PCB
  • External Depth: 34.7mm
  • External Length / Height: 15.6mm
  • External Width: 14.5mm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Withstand Voltage: 1500V
