Mp-24-06L-TGG RF Coaxial, SMB, Jack, 50ohm, Crimp multicomp Pro

MULTICOMP PROUGS :MP-24-06L-TGG Code de commande:1169648

Prix:
Prix ​​promotionnel€9,13

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (357 unité)

Documents et téléchargements

description

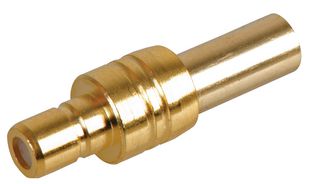

MULTICOMP PRO - MP-24-06L-TGG - RF / Coaxial Connector, SMB Coaxial, Straight Jack, Crimp, 50 ohm, RG174, Brass

  • Connector Type: SMB Coaxial
  • Connector Body Style: Straight Jack
  • Coaxial Termination: Crimp
  • Impedance: 50ohm
  • Coaxial Cable Types: RG174
  • Contact Material: Brass
  • Contact Plating: Gold Plated Contacts
  • Frequency Max: 4GHz
  • Connector Mounting: Cable Mount
  • Product Range: -
  • SVHC: Lead (15-Jan-2019)
  • Coaxial Type: RG174
  • Connector Mounting Orientation: Cable
  • Contact Resistance: 6mohm
  • Insulation Resistance: 1000Mohm
  • No. of Mating Cycles: 500
  • Operating Frequency Max: 4GHz
  • Operating Temperature Max: 165°C
  • Operating Temperature Min: -65°C
  • Termination Method: Crimp
