MP0027/3 Switch, SPNO, SPNC, Anti-Vandal Bulgin Limited

BULGIN LIMITEDUGS :MP0027/3 Code de commande:3248823

Prix:
Prix ​​promotionnel€40,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 3 produits disponibles

Documents et téléchargements

description

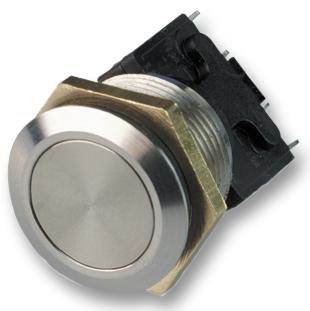

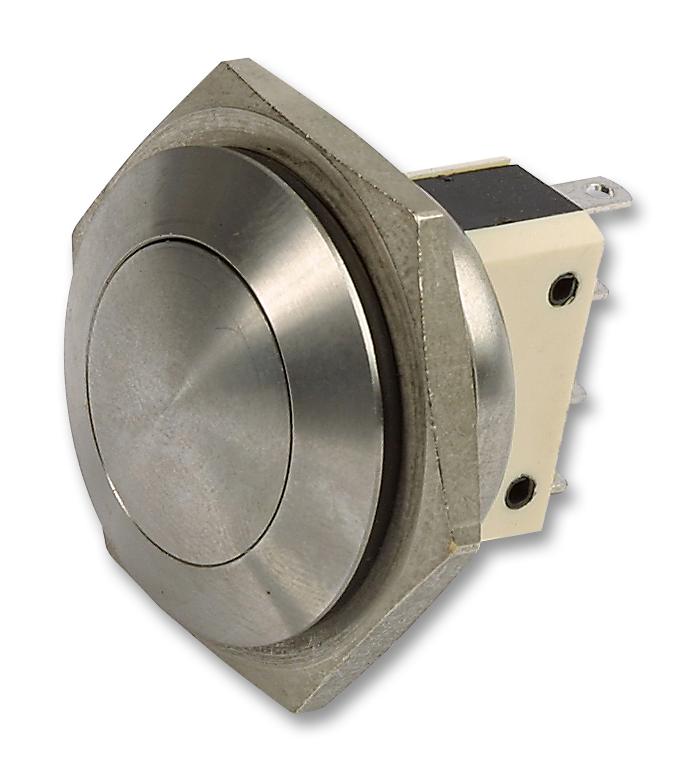

BULGIN LIMITED - MP0027/3 - Vandal Resistant Switch, 25.8 mm, SPDT, Momentary, Round Domed, Natural

  • Contact Configuration: SPDT
  • Actuator / Cap Colour: Natural
  • Product Range: -
  • Switch Operation: Momentary
  • Illumination Colour: Non-illuminated
  • Switch Terminals: Solder Lug
  • Contact Current Max: 5A
  • Contact Voltage AC Max: 250V
  • Operating Force: 7.5N
  • Contact Voltage DC Max: 28V
  • SVHC: No SVHC (27-Jun-2018)
  • Contact Current @ Contact Voltage AC Max: 5A
  • Contact Current AC Max: 5A
  • Contact Current DC Max: 2A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 28V
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 28V
  • Dielectric Strength VDC: 2kV
  • External Depth: 26mm
  • External Diameter: 27.8mm
  • External Length / Height: 27.6mm
  • IP / NEMA Rating: IP66
  • Insulation Resistance: 1000Mohm
  • Material: Silver
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Panel Cutout Diameter: 25.8mm
  • Panel Cutout Size: 25.8 mm
  • Panel Thickness Max: 4mm
  • Pushbutton Actuator Style: Round Domed
  • Pushbutton Switch Type: Anti-Vandal
  • Switch Mounting: Panel
