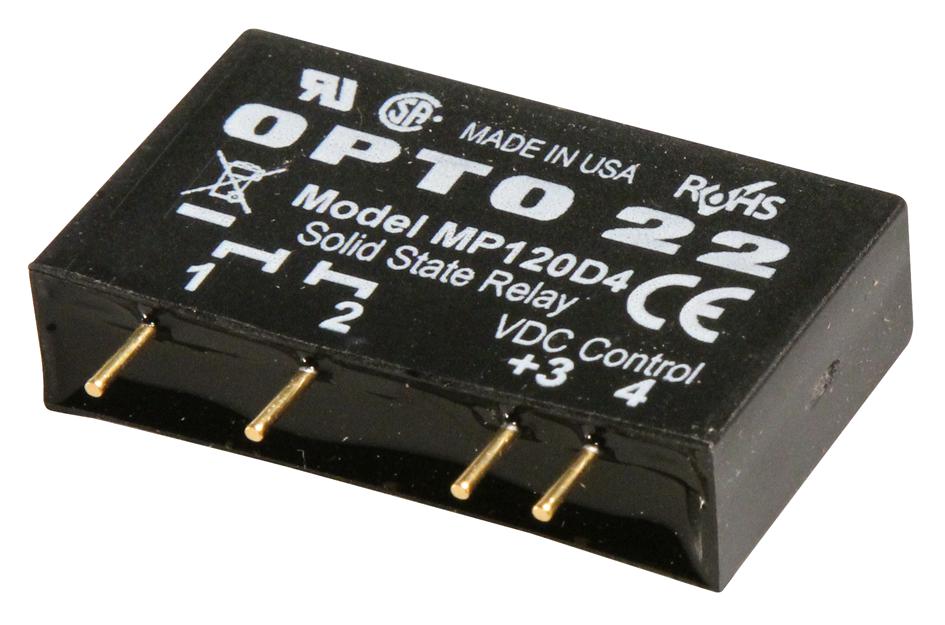

OPTO 22 - MP120D4 - Solid State Relay, 4 A, 140 VAC, PCB, Through Hole, Zero Crossing
- Contact Configuration: -
- Load Current: 4A
- Operating Voltage Max: 140VAC
- Relay Mounting: PCB
- Relay Terminals: Through Hole
- Switching Mode: Zero Crossing
- Operating Voltage Min: 12VAC
- Control Voltage Min: 3VDC
- Control Voltage Max: 24VDC
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CE, CSA
- Approval Category: UL Recognised
- Control Voltage DC Max: 24VDC
- Control Voltage DC Min: 3VDC
- Control Voltage Range: 3V DC to 24V DC
- Control Voltage Type: DC
- Current Rating: 4A
- Dropout Voltage Vdo: 1VDC
- External Depth: 10.16mm
- External Length / Height: 24.89mm
- External Width: 43.18mm
- I2t: 30ms
- Input Voltage: 3V DC to 24V DC
- Isolation Voltage: 4kV
- Leakage Current: 5mA
- Load Current RMS Max: 4A
- Load Voltage Range: 12V AC to 140V AC
- Operating Voltage Range: 12V AC to 140V AC
- RMS Load Voltage Max: 140V
- RMS Load Voltage Min: 12V
- Resistance: 1kohm
- Single Cycle Surge Current: 85A
- Surge Current: 85A
- Voltage Drop @ Rated Current: 1.6V
