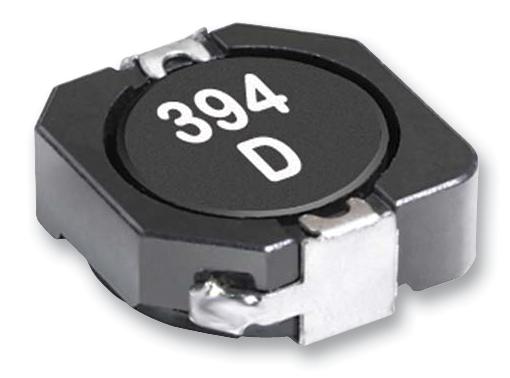

COILCRAFT - MSS1038-102NLC - Power Inductor (SMD), 1 µH, 10 A, Shielded, 9 A, MSS1038, 10.2mm x 10mm x 3.8mm
- Inductance: 1µH
- RMS Current (Irms): 10A
- Inductor Construction: Shielded
- Saturation Current (Isat): 9A
- Product Range: MSS1038 Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 0.006ohm
- Inductance Tolerance: ± 30%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Reel Quantity: 250
- Self Resonant Frequency Min: 138MHz
