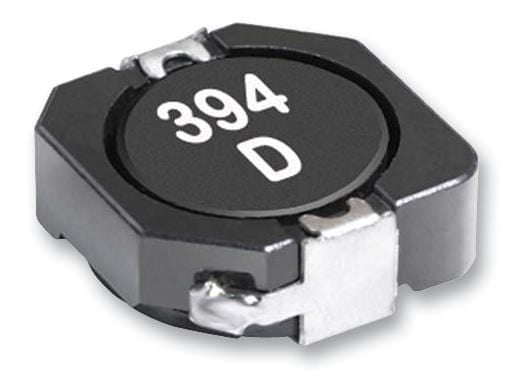

COILCRAFT - MSS1038-104MLC - Power Inductor (SMD), 100 µH, 1.45 A, Shielded, 1.02 A, MSS1038, 10.2mm x 10mm x 3.8mm
- Inductance: 100µH
- RMS Current (Irms): 1.45A
- Inductor Construction: Shielded
- Saturation Current (Isat): 1.02A
- Product Range: MSS1038 Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 0.304ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Reel Quantity: 250
- Self Resonant Frequency Min: 6MHz
