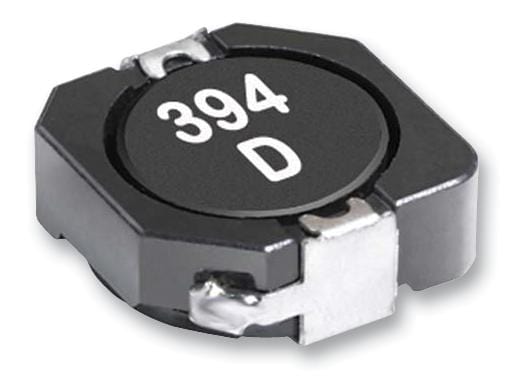

COILCRAFT - MSS1038-474KLC - Power Inductor (SMD), 470 µH, 630 mA, Shielded, 500 mA, MSS1038, 10.2mm x 10mm x 3.8mm
- Inductance: 470µH
- RMS Current (Irms): 630mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 500mA
- Product Range: MSS1038 Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 1.243ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 3MHz
