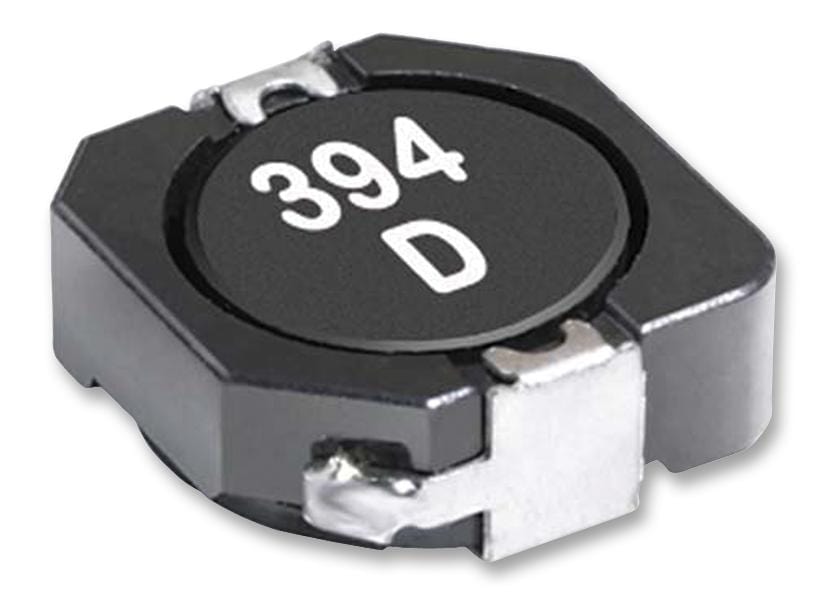

COILCRAFT - MSS1038T-105KLC - Power Inductor (SMD), 1 mH, 450 mA, Shielded, 350 mA, MSS1038T, 10.2mm x 10mm x 3.8mm
- Inductance: 1mH
- RMS Current (Irms): 450mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 350mA
- Product Range: MSS1038T Series
- Power Inductor Case: 10.2mm x 10mm x 3.8mm
- DC Resistance Max: 2.853ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 3MHz
